ReorderTable

Introduction

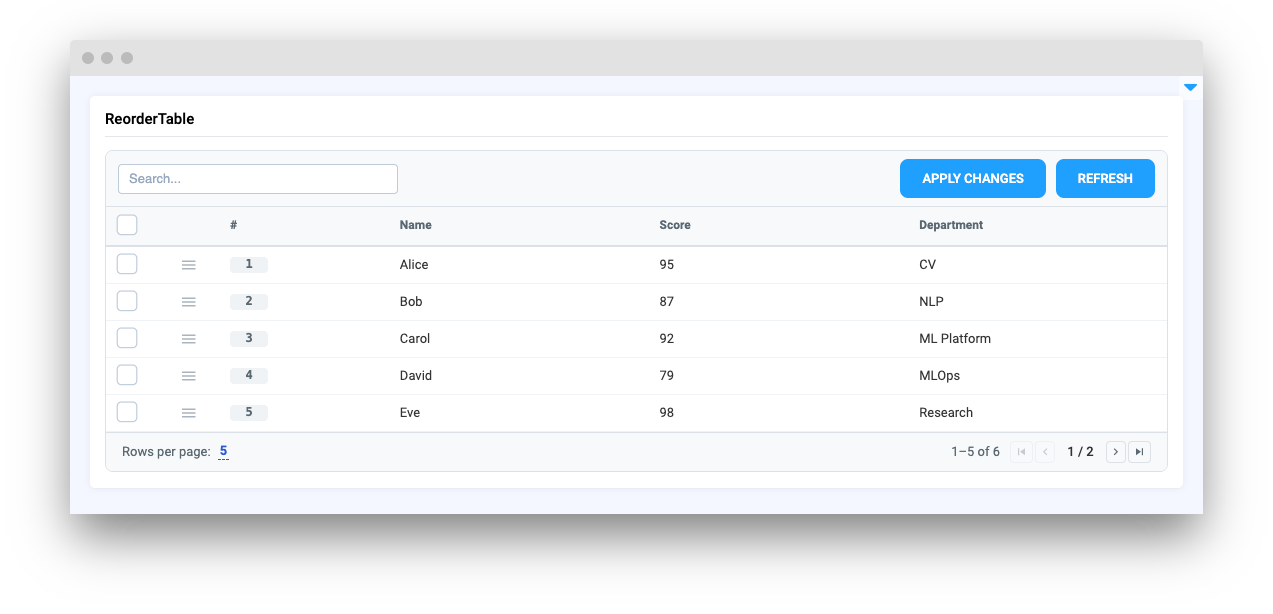

ReorderTable widget in Supervisely displays tabular data and allows users to reorder rows with drag-and-drop.

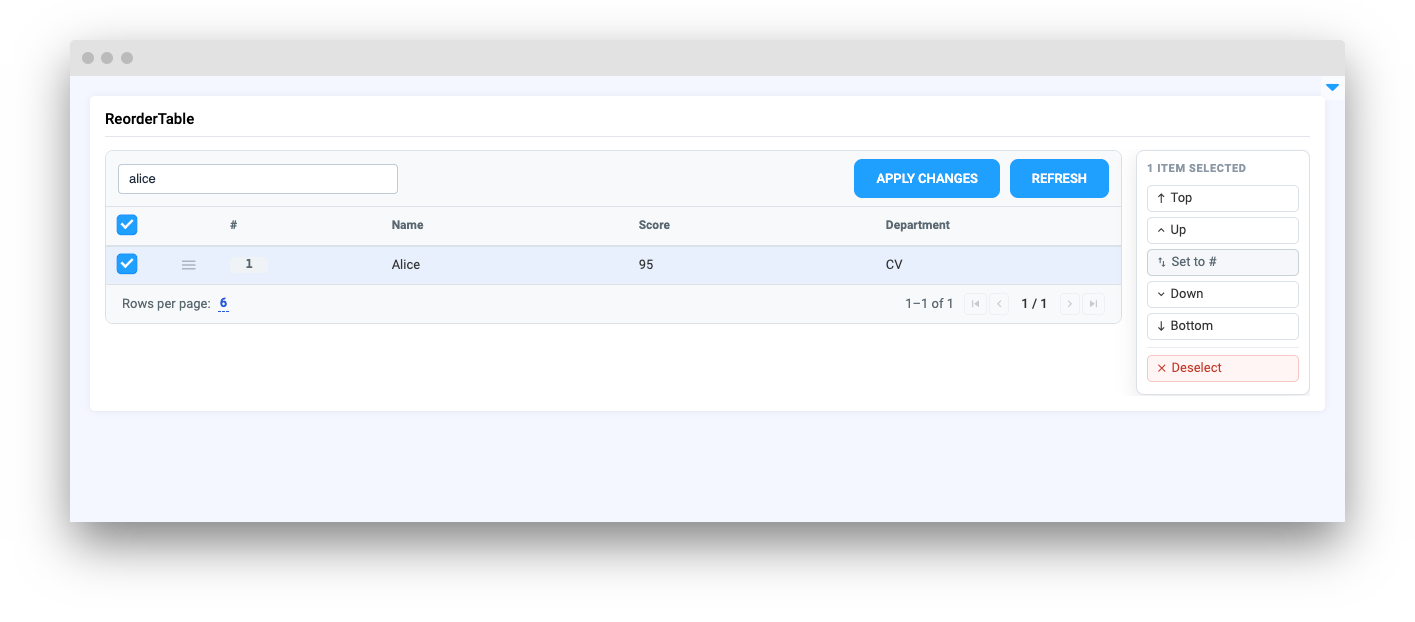

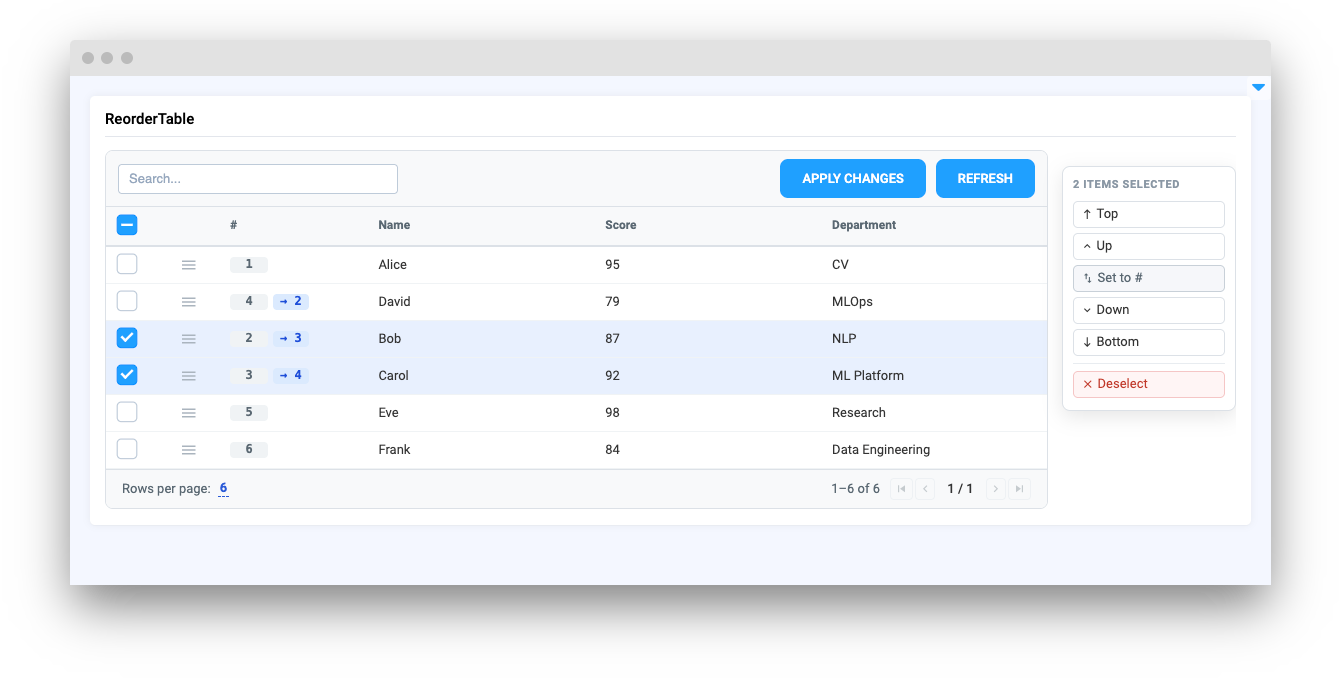

It supports multi-row selection and provides quick actions in a floating panel (Top, Up, Set to #, Down, Bottom) to move selected rows.

Read this tutorial in developer portal.

Function signature

ReorderTable(
    columns: List[str],
    data: Optional[List] = None,
    page_size: int = 10,
    content_top_right: Optional[Widget] = None,
    widget_id: Optional[str] = None,
)

Parameters

Parameters	Type	Description
columns	List[str]	Table columns names.
data	Optional[List]	Table rows, where each row is a list of cell values by column.
page_size	int	Number of rows per page.
content_top_right	Optional[Widget]	Optional widget rendered in the top-right area of the table header.
widget_id	Optional[str]	ID of the widget.

Methods and attributes

Attributes and Methods	Description
get_order()	Get current rows order as list of 0-based indices from the original data.
get_reordered_data()	Get table rows in the current user-defined order.
get_column_data(column_name: str)	Get values from one column in the current row order.
set_data(columns: List, data: List)	Replace table data and reset order.
reset_order()	Reset current order to the original identity order.
is_order_changed()	Check whether current order differs from the original order.
@order_changed	Decorator callback fired whenever row order changes in the UI.

Mini App Example

You can find this example in our Github repository:

ui-widgets-demos/tables/008_reorder_table/src/main.py

Import libraries

import supervisely as sly
from supervisely.app.widgets import Button, Card, Container, ReorderTable, Text

Initialize widget

columns = ["Name", "Score", "Department"]
data = [
    ["Alice", 95, "CV"],
    ["Bob", 87, "NLP"],
    ["Carol", 92, "ML Platform"],
]

reset_btn = Button("Reset order")
reorder_table = ReorderTable(
    columns=columns,
    data=data,
    page_size=5,
    content_top_right=reset_btn,
)

Create app layout

order_text = Text("Current order: [0, 1, 2]")
content = Container([reorder_table, order_text])
card = Card(title="ReorderTable", content=content)
app = sly.Application(layout=card)

Add callbacks

@reorder_table.order_changed
def handle_reorder(order):
    order_text.text = f"Current order: {order}"


@reset_btn.click
def reset_order():
    reorder_table.reset_order()
