InputTagList

Introduction

InputTagList widget in Supervisely is a user interface element that allows users to work with multiple tag labels simultaneously. Unlike the single InputTag widget, InputTagList enables bulk operations on tag collections, making it easier to manage multiple tags at once. It uses a list of TagMeta objects and provides convenient methods for selecting, deselecting, and manipulating multiple tags. This widget is particularly useful for applications that need to handle multiple tag operations efficiently.

Function signature

InputTagList(
    tag_metas,
    max_width=300,
    max_height=50,
    multiple=False,
    widget_id=None,
)

Parameters

Parameters	Type	Description
tag_metas	Union[List[TagMeta], TagMetaCollection]	List of TagMeta objects from which Tags will be managed
max_width	int	Max tag field width
max_height	int	Max tag field height
multiple	bool	If set False, only one tag can be selected at a time, otherwise can select several tags (multi-select).
widget_id	str	ID of the widget

tag_metas

Determine list of TagMeta objects from which Tags will be managed. Supports all possible Tag types: any_number, any_string, one_of_string, none.

type: Union[List[TagMeta], TagMetaCollection]

max_width

Determine max tag field width.

type: int

default value: 300

input_tag_list = InputTagList(tag_metas=tag_metas, max_width=400)

max_height

Determine max tag field height.

type: int

default value: 50

input_tag_list = InputTagList(tag_metas=tag_metas, max_height=100)

multiple

If set False, only one tag can be selected at a time, otherwise can select several tags (multi-select).

type: bool

default value: False

widget_id

ID of the widget.

type: str

default value: None

Methods and attributes

Attributes and Methods	Description
select_all()	Select all available tags in the list.
deselect_all()	Deselect all tags in the list.
select(tag_names: List[str])	Select specific tags by their names.
get_selected_tags()	Get list of currently selected tags with their values.
get_selected_tag_metas()	Get list of TagMeta objects for currently selected tags.
set_values(values: Dict[str, Any])	Set values for tags by tag name.
@selection_changed	Decorator function is handled when tag selection is changed.

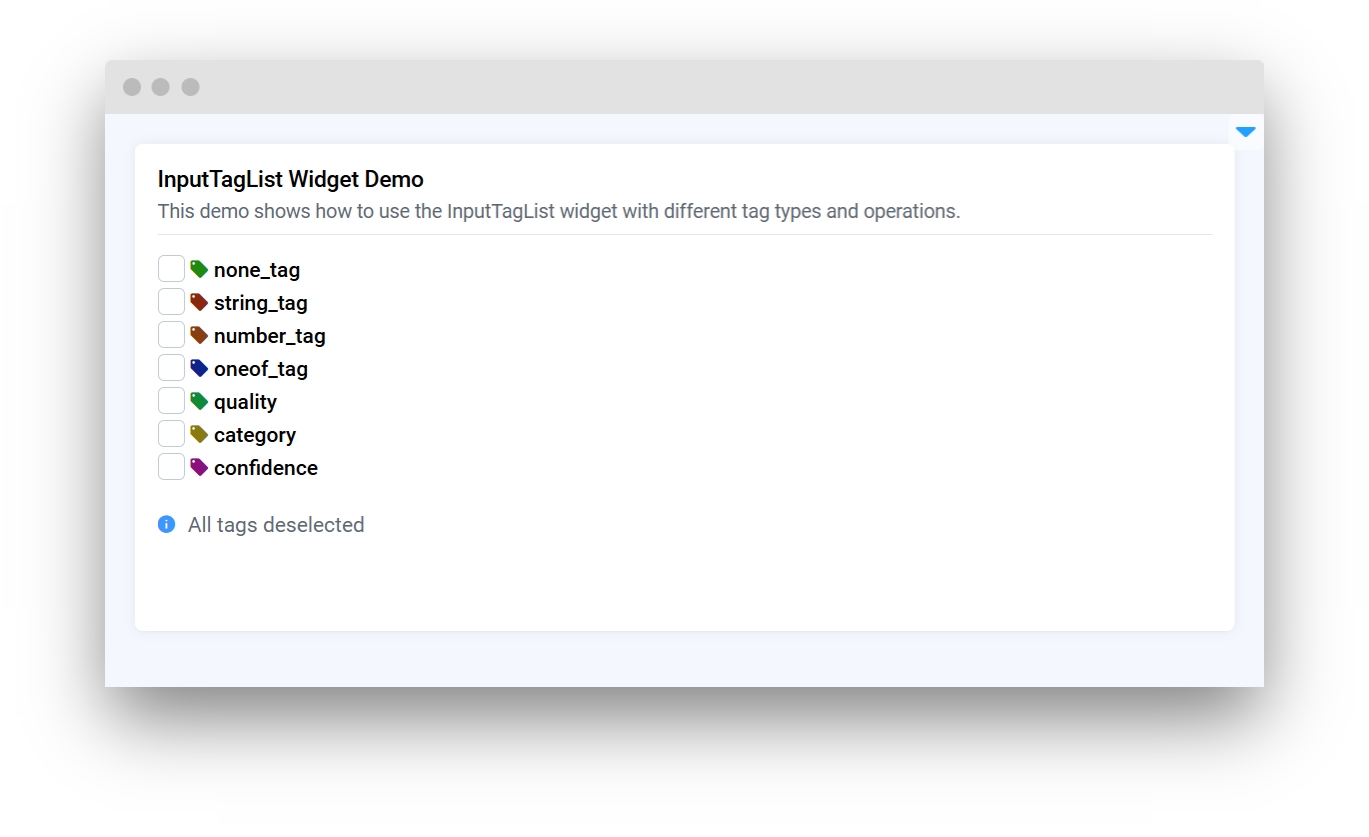

Mini App Example

You can find this example in our Github repository:

ui-widgets-demos/misc/input_tag_list/src/main.py

Import libraries

import os
import supervisely as sly
from supervisely.app.widgets import Card, Container, Button, Text, InputTagList
from dotenv import load_dotenv

Init API client

First, we load environment variables with credentials and init API for communicating with Supervisely Instance:

load_dotenv("local.env")
load_dotenv(os.path.expanduser("~/supervisely.env"))

api = sly.Api()

Create different types of tag metas for demonstration

# Create different types of tag metas
tag_meta_none = sly.TagMeta("none_tag", sly.TagValueType.NONE)
tag_meta_string = sly.TagMeta("string_tag", sly.TagValueType.ANY_STRING)
tag_meta_num = sly.TagMeta("number_tag", sly.TagValueType.ANY_NUMBER)
tag_meta_oneof = sly.TagMeta(
    "oneof_tag", sly.TagValueType.ONEOF_STRING, possible_values=["option1", "option2", "option3"]
)

# Additional tag metas for demonstration
tag_meta_quality = sly.TagMeta(
    "quality", sly.TagValueType.ONEOF_STRING, possible_values=["high", "medium", "low"]
)
tag_meta_category = sly.TagMeta("category", sly.TagValueType.ANY_STRING)
tag_meta_confidence = sly.TagMeta("confidence", sly.TagValueType.ANY_NUMBER)

# Create a list of tag metas
tag_metas = [
    tag_meta_none,
    tag_meta_string,
    tag_meta_num,
    tag_meta_oneof,
    tag_meta_quality,
    tag_meta_category,
    tag_meta_confidence,
]

Initialize InputTagList widget

input_tag_list = InputTagList(tag_metas=tag_metas, max_width=400, max_height=200)

Initialize control buttons and text widget

# Create buttons for demonstration
btn_select_all = Button("Select All")
btn_deselect_all = Button("Deselect All")
btn_select_specific = Button("Select random")
btn_get_selected = Button("Get Selected Tags")
btn_set_values = Button("Set Sample Values")

# Text widget to display results
result_text = Text("Select tags and click buttons to see the results", status="info")

Create app layout

Prepare a layout for app using Card widget with the content parameter and place widgets in containers.

# Create layout
buttons_container = Container(
    [btn_select_all, btn_deselect_all, btn_select_specific, btn_get_selected, btn_set_values],
    direction="vertical",
    gap=10,
)

main_container = Container(
    [Container([input_tag_list, result_text], direction="vertical", gap=20), buttons_container],
    direction="horizontal",
    gap=20,
)

card = Card(
    title="InputTagList Widget Demo",
    content=main_container,
    description="This demo shows how to use the InputTagList widget with different tag types and operations.",
)

layout = Container(widgets=[card])

Create app using layout

Create an app object with layout parameter.

app = sly.Application(layout=layout)

Handle button clicks and selection changes

Use decorators to handle button clicks and tag selection changes:

# Event handlers

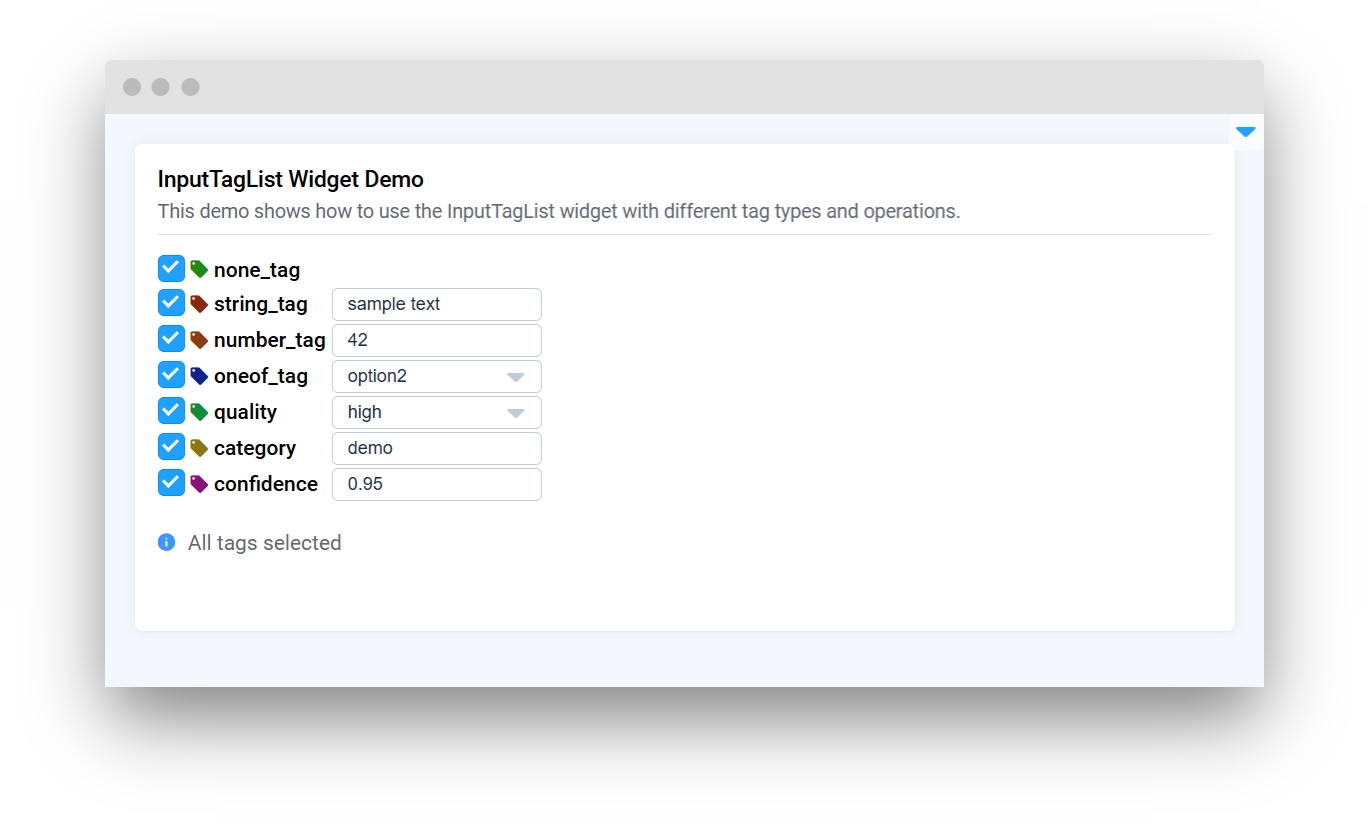

@btn_select_all.click
def select_all():
    input_tag_list.select_all()
    result_text.text = "All tags selected"

@btn_deselect_all.click
def deselect_all():
    input_tag_list.deselect_all()
    result_text.text = "All tags deselected"

@btn_select_specific.click
def select_specific():
    input_tag_list.select(["quality", "category"])
    result_text.text = "Selected 'quality' and 'category' tags"

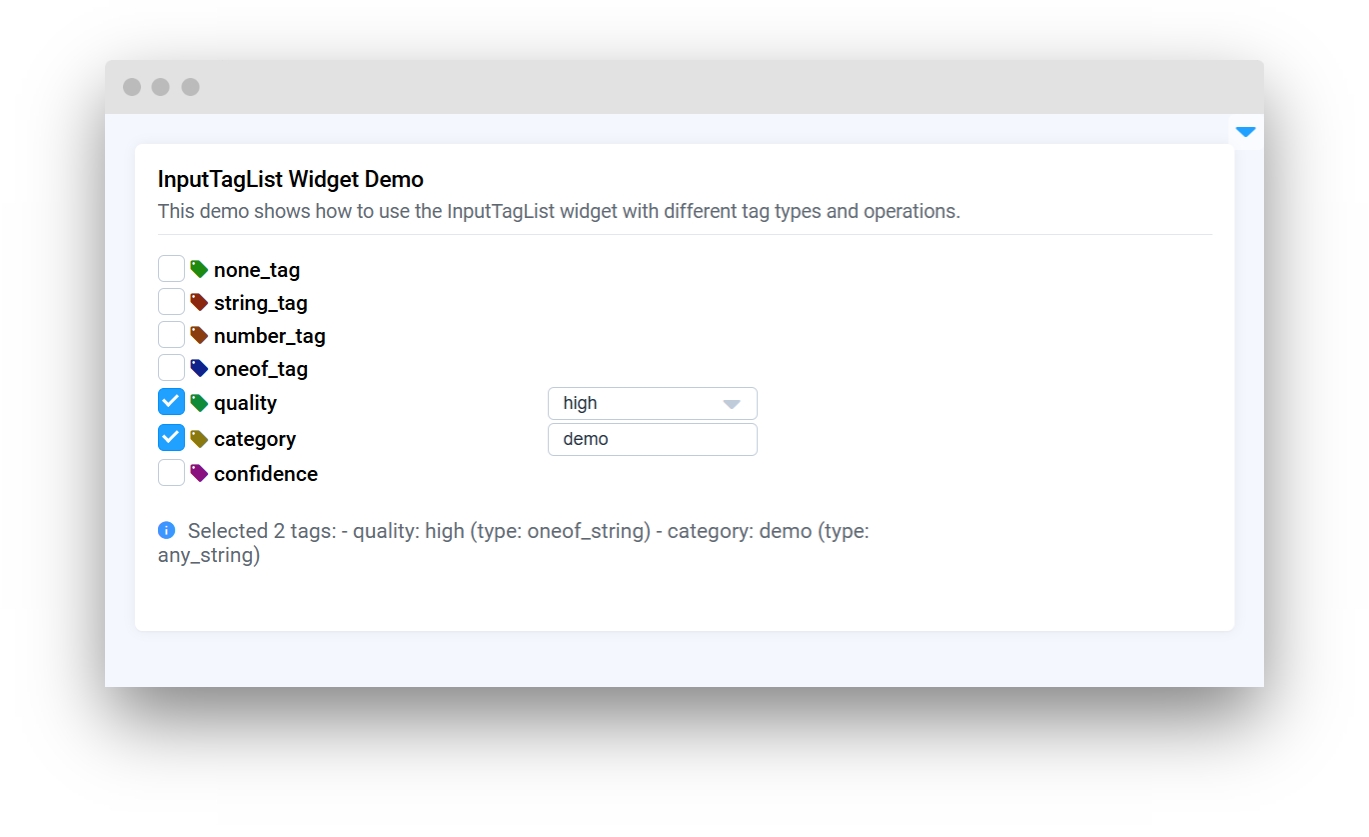

@btn_get_selected.click
def get_selected():
    selected_tags = input_tag_list.get_selected_tags()

    if selected_tags:
        result_info = f"Selected {len(selected_tags)} tags:\n"
        for tag in selected_tags:
            result_info += f"- {tag.meta.name}: {tag.value} (type: {tag.meta.value_type})\n"
    else:
        result_info = "No tags selected"

    result_text.text = result_info

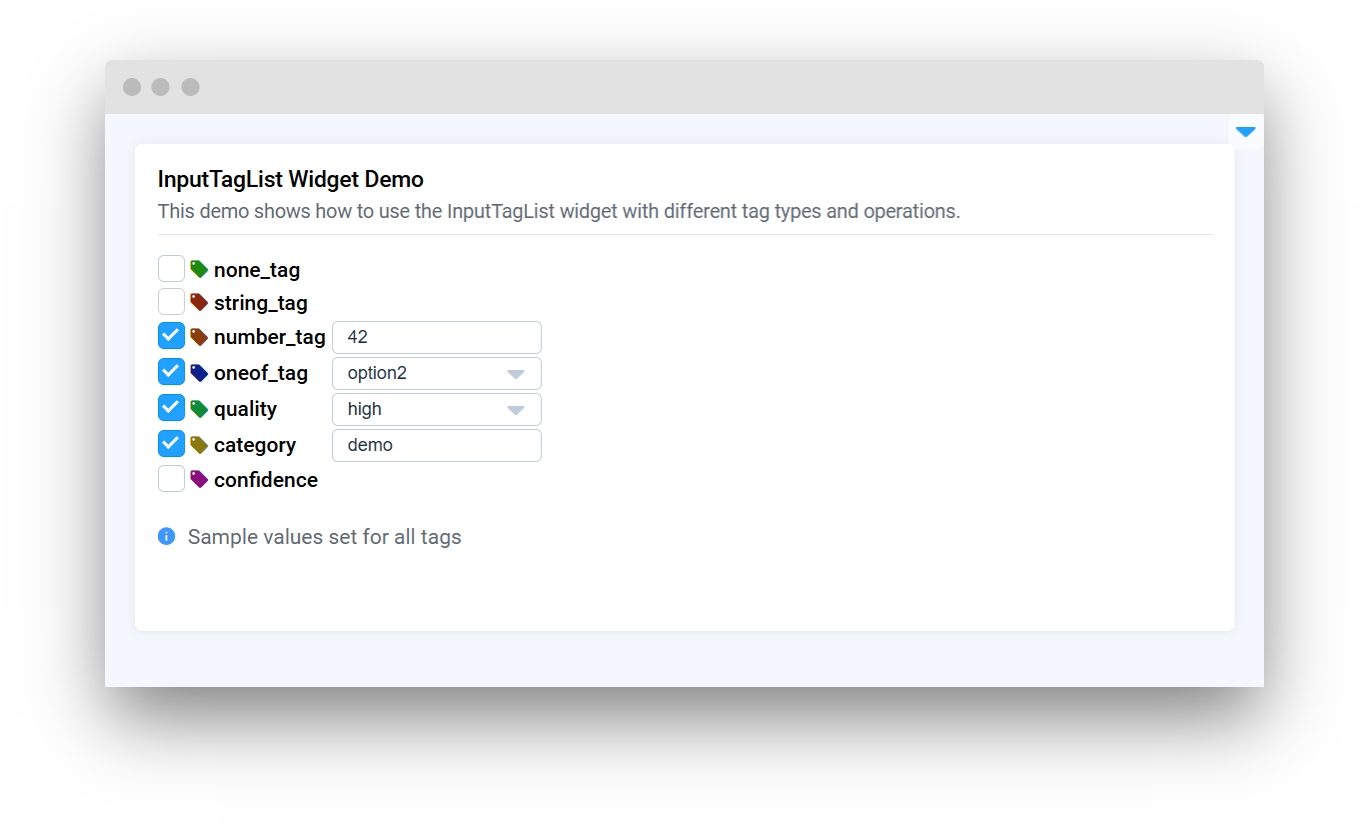

@btn_set_values.click
def set_sample_values():
    sample_values = {
        "string_tag": "sample text",
        "number_tag": 42,
        "oneof_tag": "option2",
        "quality": "high",
        "category": "demo",
        "confidence": 0.95,
    }
    input_tag_list.set_values(sample_values)
    result_text.text = "Sample values set for all tags"

# Selection change handler
@input_tag_list.selection_changed
def on_selection_changed(selected_tag_metas):
    if selected_tag_metas:
        names = [tm.name for tm in selected_tag_metas]
        result_text.text = f"Selection changed: {', '.join(names)}"
    else:
        result_text.text = "No tags selected"
