SelectTagMeta

PreviousSelectItemNextSelectAppSession

Last updated 2 years ago

Was this helpful?

Introduction

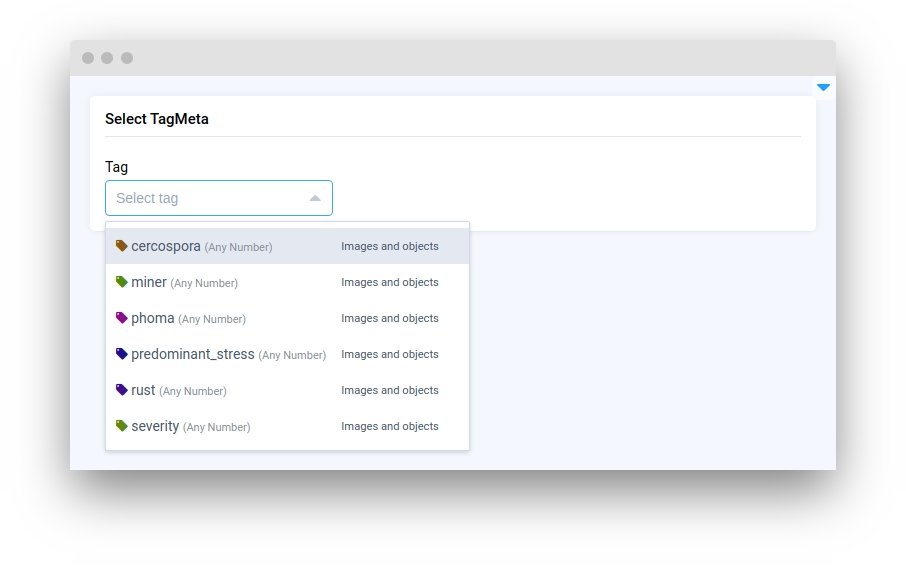

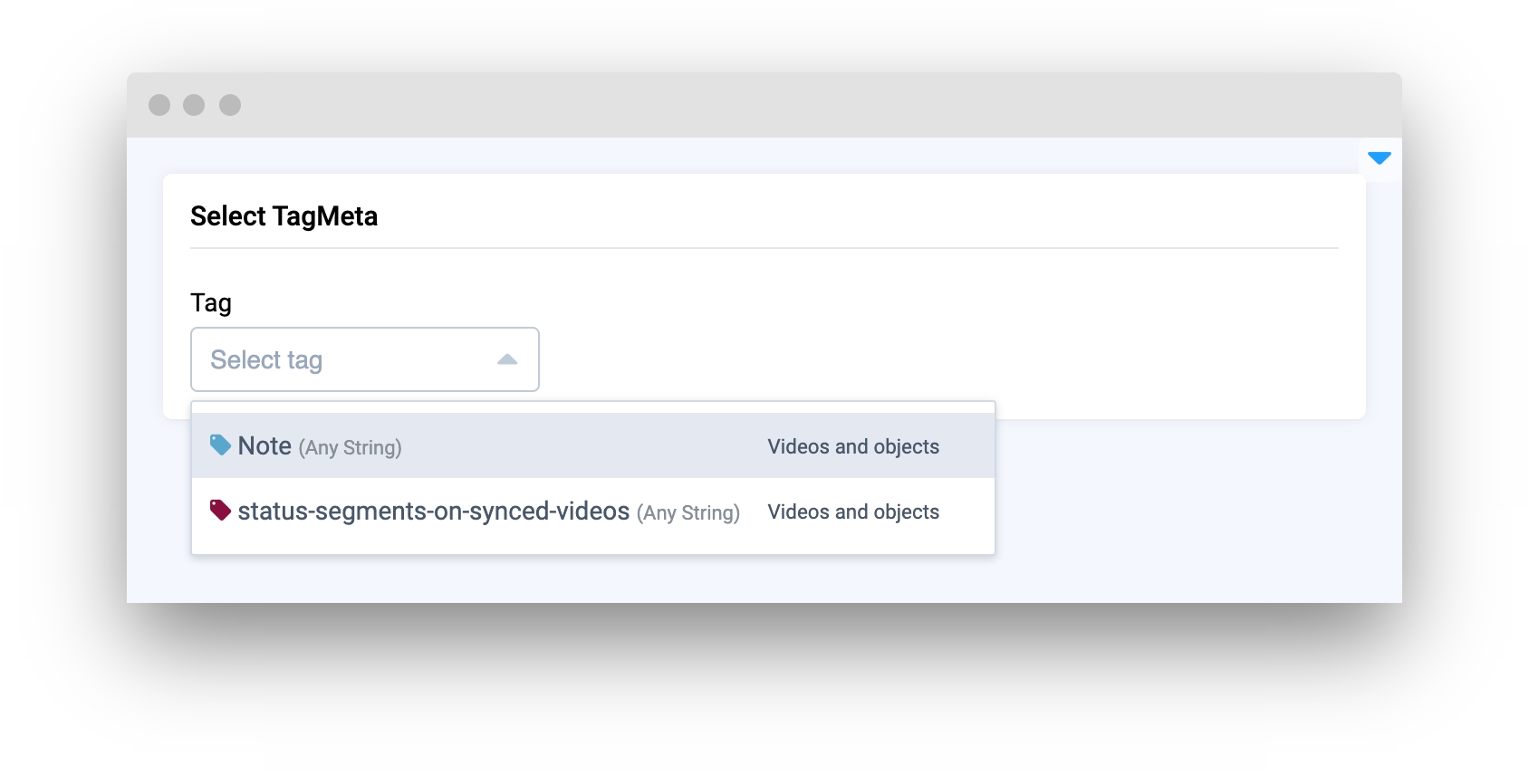

SelectTagMeta widget in Supervisely is a drop down menu that allows users to select a TagMeta from a list of available tag metadatas. The widget can be customized with various parameters, such as the default selected tag metadata, default project ID, size, allowed types, multiple selection, label showing.

Function signature

SelectTagMeta(
    default=None,
    project_id=None,
    project_meta=None,
    allowed_types=None,
    multiselect=False,
    show_label=True,
    size=None,
    widget_id=None,
)

Parameters

Parameters
Type
Description

default

str

Tag name

project_id

int

Determine Project from which Tags will be selected.

project_meta

ProjectMeta

Determine ProjectMeta from which Tags will be selected

allowed_types

List[str]

Determine Tags types witch will be available to select from all Project Tags

multiselect

bool

Allows to select multiple Tags

show_label

bool

Show label

size

Literal["large", "small", "mini", None]

Selector size

widget_id

str

ID of the widget

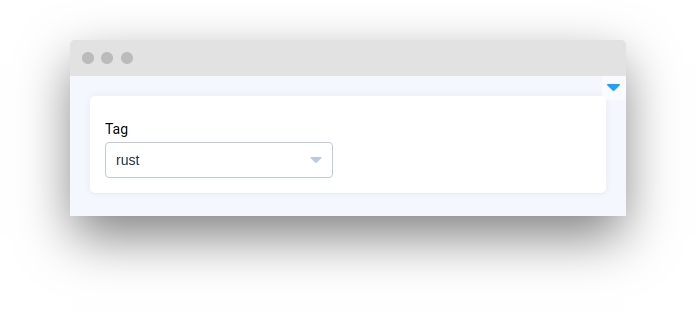

default

Determine Tag will be selected by default.

type: str

default value: None

select_tag_meta = SelectTagMeta(default="rust", project_id=project_id)

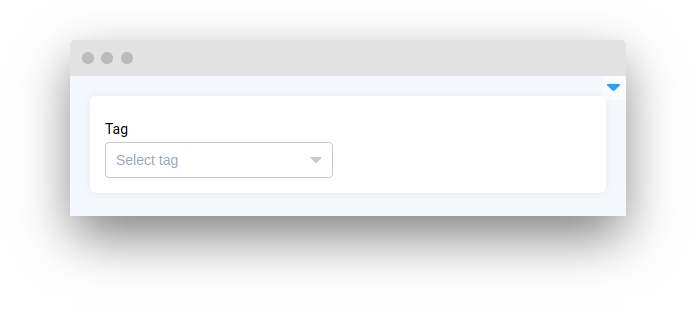

project_id

Determine Project from which Tags will be selected.

type: int

default value: None

select_tag_meta = SelectTagMeta(project_id=project_id)

project_meta

Determine ProjectMeta from which Tags will be selected.

type: ProjectMeta

default value: None

meta_json = api.project.get_meta(project_id)
project_meta = sly.ProjectMeta.from_json(meta_json)
select_tag_meta = SelectTagMeta(project_meta=project_meta)

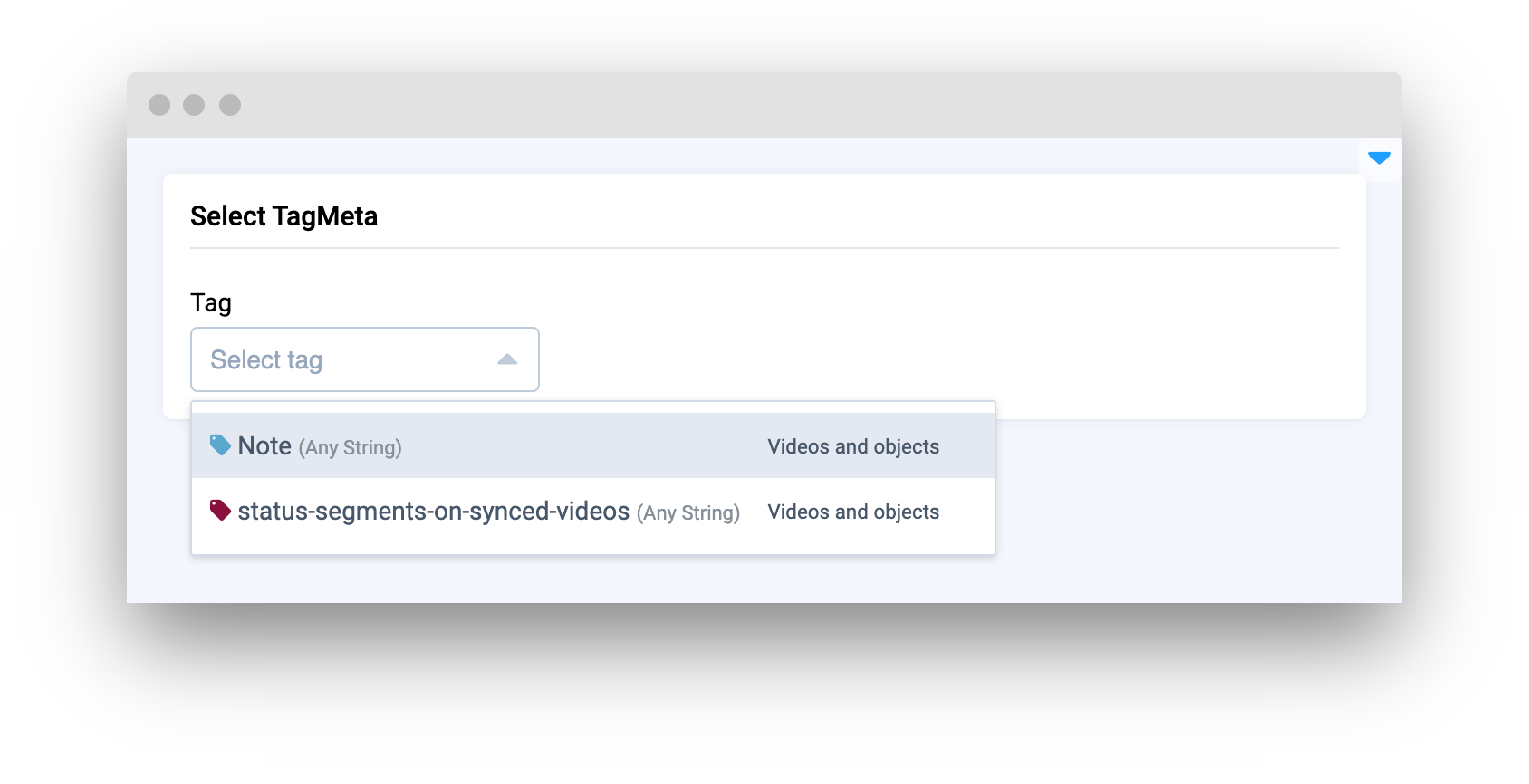

allowed_types

Determine Tags types witch will be available to select from all Project Tags. Possible Tag types: any_number, any_string, one_of_string, none.

type: List[str]

default value: None

from supervisely.annotation.tag_meta import TagValueType
allowed_types = [TagValueType.ANY_STRING]
select_tag_meta = SelectTagMeta(project_id=project_id, allowed_types=allowed_types)

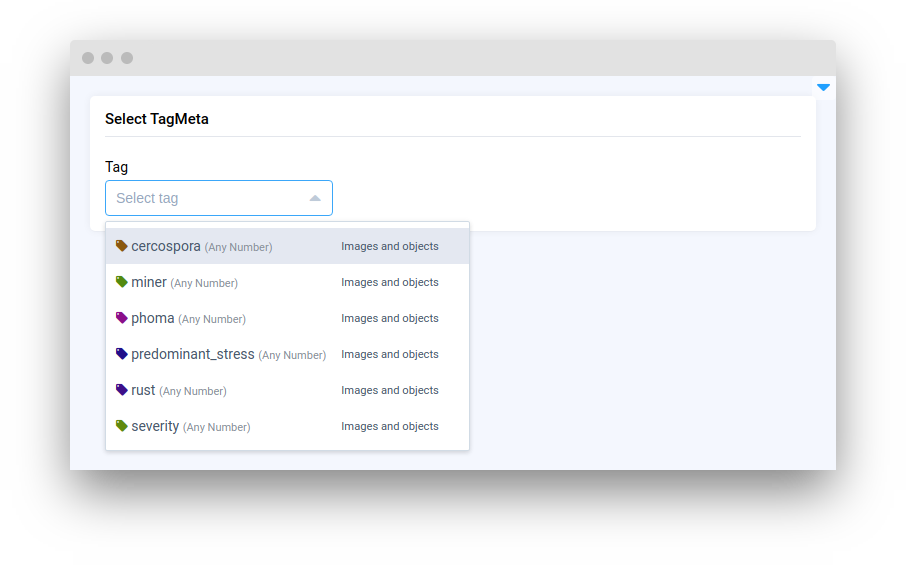

multiselect

Allows to select multiple Tags.

type: bool

default value: False

select_tag_meta = SelectTagMeta(project_id=project_id, multiselect=True)

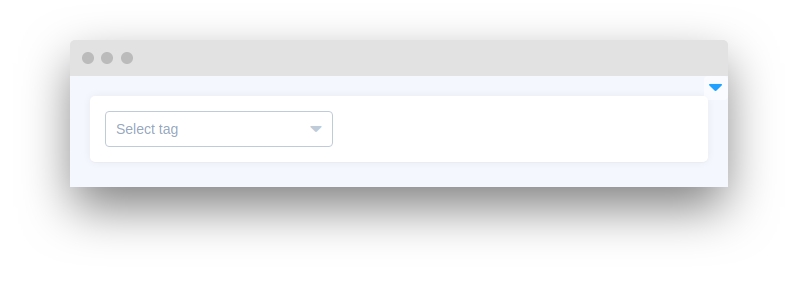

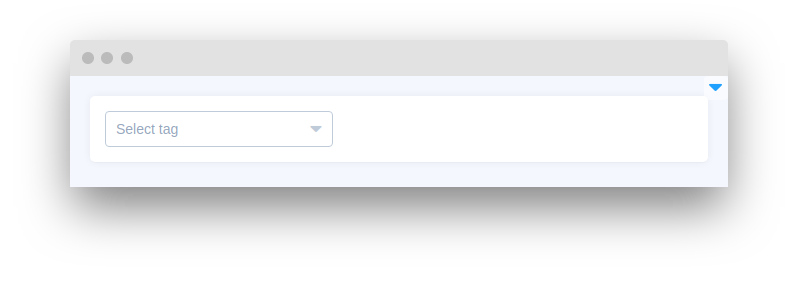

show_label

Determine show text Tag on widget or not.

type: bool

default value: True

select_tag_meta = SelectTagMeta(project_id=project_id, show_label=False)

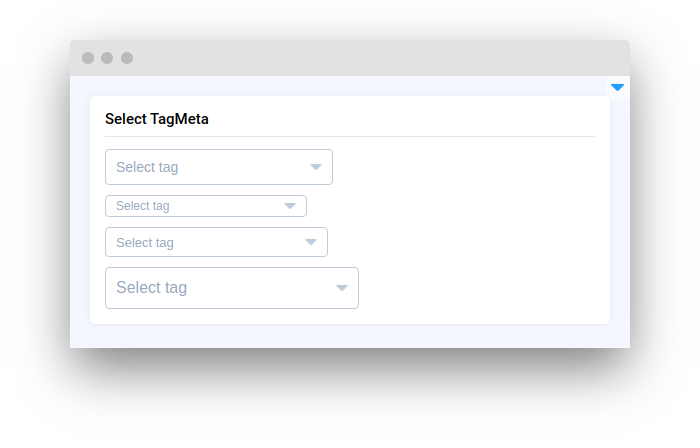

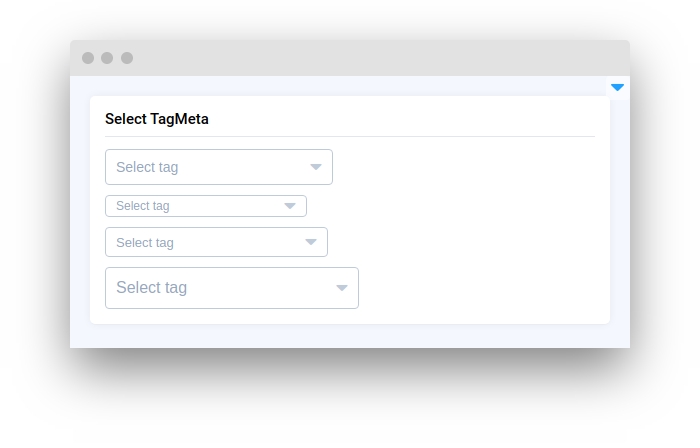

size

Size of input.

type: Literal["large", "small", "mini", None]

default value: None

select_tag_meta = SelectTagMeta(default="cat", project_id=project_id, show_label=False)
select_mini = SelectTagMeta(default="cat", project_id=project_id, show_label=False, size="mini")
select_small = SelectTagMeta(default="cat", project_id=project_id, show_label=False, size="small")
select_large = SelectTagMeta(default="cat", project_id=project_id, show_label=False, size="large")

card = Card(
    title="Select TagMeta",
    content=Container(widgets=[select_tag_meta, select_mini, select_small, select_large]),
)

widget_id

ID of the widget.

type: str

default value: None

Methods and attributes

Attributes and Methods
Description

get_selected_name()

Return selected tag name. If multiselect is True raise RuntimeError.

get_selected_names()

Return List with selected Tag names. If multiselect is False raise RuntimeError.

get_tag_meta_by_name(name: str)

Return TagMeta by Tag name.

get_selected_item()

Return TagMeta for selected Tag.

get_selected_items()

Return List, containing TagMeta for selected tags.

set_name(name: str)

Set Tag with given name as selected.

set_names(names: List[str])

Set Tags from given list of Tag names as selected. If multiselect is False raise RuntimeError.

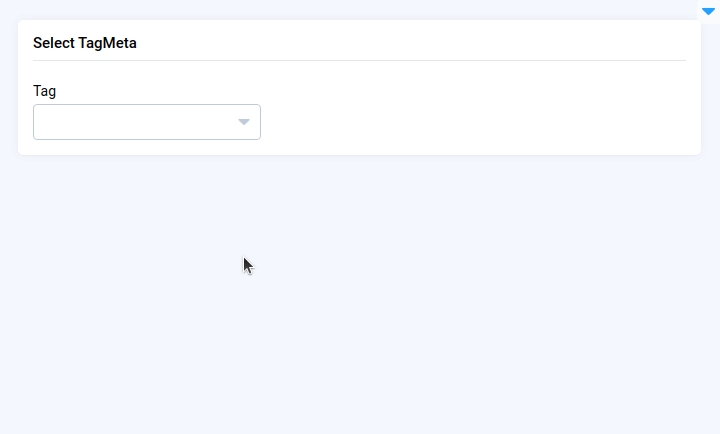

Mini App Example

You can find this example in our Github repository:

Import libraries

import os

import supervisely as sly
from dotenv import load_dotenv
from supervisely.app.widgets import Card, Container, SelectTagMeta

Init API client

First, we load environment variables with credentials and init API for communicating with Supervisely Instance:

load_dotenv("local.env")
load_dotenv(os.path.expanduser("~/supervisely.env"))

api = sly.Api()

Prepare Project ID

project_id = sly.env.project_id()

Initialize SelectTagMeta widget

select_tag_meta = SelectTagMeta(default="cat", project_id=project_id)

Create app layout

Prepare a layout for app using Card widget with the content parameter and place widget that we've just created in the Container widget.

card = Card(
    title="Select TagMeta",
    content=select_tag_meta,
)

layout = Container(widgets=[card])

Create app using layout

Create an app object with layout parameter.

app = sly.Application(layout=layout)

🔥
ui-widgets-demos/selection/007_select_tag_meta/src/main.py
