Collapse

Introduction

In this tutorial you will learn how to use Collapse widget in Supervisely app.

Function signature

Collapse(
    labels=['Description', 'Widget1'],
    contents=[text, my_widget],
    accordion=False,
    widget_id=None,
)

Parameters

Parameters
Type
Description

labels

List[str]

Collapses titles. Only distinct values are allowed.

contents

List[Union[str, Widget]]

Collapses content. Raw text or other widgets are possible.

accordion

bool

Whether to activate accordion mode. If true, only one panel could be active.

widget_id

str

Id of the widget

labels

Determine Collapse titles.

type: List[str]

contents

Determine Collapse content.

type: List[Union[str, Widget]]

labels = ['Description', 'Table']

table_data = {
    "col1": [1, 2, 3],
    "col2": [2, 3, 4]
}

table = Table(data=table_data)  # table widget
contents = [
    'Text sample',
    table,
]

slider = Slider(
    labels=labels,
    contents=contents,
)

accordion

Activate accordion mode. If true, only one panel could be active.

type: bool

default value: False

slider = Slider(
    labels=labels,
    contents=contents,
    accordion=True,
)

widget_id

ID of the widget.

type: str

default value: None

Methods and attributes

Attributes and Methods
Description

set_active_panel(value: Union[str, List[str]])

Set Collapse active panel. In accordion mode, only strings are permitted.

get_active_panel()

Return name/names of active panel(s).

get_items()

Return panels description.

set_items(value: List[Collapse.Item])

Set Collapse items.

add_items(value: List[Collapse.Item])

Extends list of Collapse items.

Mini App Example

Import libraries

import os

import supervisely as sly
from dotenv import load_dotenv
from supervisely.app.widgets import Card, Container, Collapse, Table

Init API client

First, we load environment variables with credentials and init API for communicating with Supervisely Instance:

load_dotenv("local.env")
load_dotenv(os.path.expanduser("~/supervisely.env"))

api = sly.Api()

Initialize Collapse content and widget

table_data = {
    "index": [0, 1, 2],
    "x": [1, 2, 3],
    "-x^2": [-1, -4, -9],
}

tbl = Table(data=table_data)
text = "Lorem ipsum dolor sit amet, consectetur adipiscing elit."

items = [
    Collapse.Item(name="table", title="Collapse with text", content=text),
    Collapse.Item(name="text", title="Collapse with table", content=tbl),
    Collapse.Item(name="1", title="Random #1", content="Random #1"),
    Collapse.Item(name="2", title="Random #2", content="Random #2"),
]

collapse = Collapse(
    items=items,
    accordion=False,
)

If no elements are passed during initialization, then the Collapse will contain an empty element by default. To add new elements and delete the default one use set_items funciton.

collapse = Collapse(accordion=False)
items = []

# code to create items
# ...

collapse.set_items(items)

Create text widget and contol button

This text widget will show the collapse widget's current active item(s).

text = Text("Active item: Collapse with text")
button = Button("Open random collapse")

Create app layout

Prepare a layout for app using Card widget with the content parameter and place widget that we've just created in the Container widget.

layout = Container(widgets=[Card(title="Collapse", content=Container([text, collapse, button]))])
layout = Container(widgets=[card])

Create app using layout

Create an app object with layout parameter.

app = sly.Application(layout=layout)

Update text widget state

collapse.value_changed decorator handle collapse changes and pass active collapse items to show_active_item function.

@collapse.value_changed
def show_active_item(value):
    if isinstance(value, list):
        act_items = ", ".join(value)
    else:
        act_items = value
    text.text = f"Active item: {act_items}"

tbl.click decorator handle table changes (sorting, searching etc.).

@tbl.click
def handle_table_button(datapoint: sly.app.widgets.Table.ClickedDataPoint):
    if datapoint.button_name is None:
        return

button.click decorator handle clicks on button. We use this button to open random collapse.

@button.click
def open_random_collapse():
    panels = list(collapse._items_title)
    value = panels[random.randint(0, len(panels) - 1)]
    collapse.set_active_panel(value)
    text.text = f"Active item: {value}"
PreviousReloadableAreaNextDialog

Last updated 1 year ago

Was this helpful?

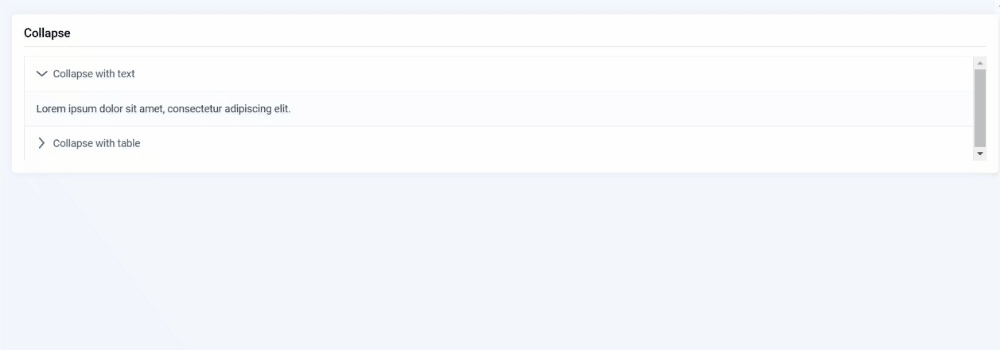

accordion_false

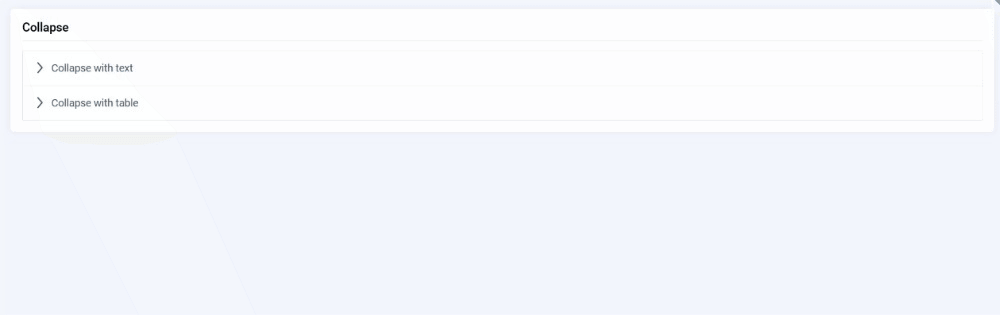

accordion_true
🔥
