Modal

Introduction

Modal widget in Supervisely displays content in a modal overlay window with customizable size and content. It can contain any other widgets and provides programmatic control to show/hide the modal. The modal also supports callbacks to track when it opens or closes.

Read this tutorial in developer portal.

Function signature

Modal(
    title="My Modal",
    widgets=[text_widget, input_widget],
    size="small",
    widget_id=None,
)

modal

Parameters

Parameters	Type	Description
title	str	Modal window title
widgets	List[Widget]	Widgets to display in modal
size	Literal["tiny", "small", "large", "full"]	Modal size
widget_id	str	ID of the widget

title

Modal window title displayed at the top of the modal.

type: str

default value: ""

widgets

List of widgets to be displayed inside the modal. Can contain any Supervisely widgets.

type: List[Widget]

default value: []

input_widget = Input("Enter value")
text_widget = Text("This is modal content")

modal = Modal(
    title="My Modal",
    widgets=[text_widget, input_widget]
)

size

Size of the modal window. Available options: "tiny", "small", "large", "full".

type: Literal["tiny", "small", "large", "full"]

default value: "small"

widget_id

ID of the widget.

type: str

default value: None

Methods and attributes

Methods	Description
show()	Shows the modal window.
hide()	Hides the modal window.
show_modal()	Shows the modal (alias for show).
close_modal()	Closes the modal (alias for hide).
is_opened()	Returns True if modal is currently open.
@value_changed()	Decorator to handle modal visibility changes (open/close).
title	Property to get/set the modal title.
widgets	Property to get/set the list of widgets.

Mini App Example

You can find this example in our Github repository:

supervisely-ecosystem/ui-widgets-demos/layouts-and-containers/018_modal/src/main.py

Import libraries

import os
import supervisely as sly
from supervisely.app.widgets import Card, Container, Input, Text, Modal, Button
from dotenv import load_dotenv

Init API client

First, we load environment variables with credentials and init API for communicating with Supervisely Instance:

load_dotenv("local.env")
load_dotenv(os.path.expanduser("~/supervisely.env"))

api = sly.Api()

Initialize widgets to display inside modal

input_widget = Input("Enter value")
text_widget = Text("This is modal content")
button = Button("Open modal")

Initialize Modal widget

modal = Modal(title="My Modal Window", widgets=[text_widget, input_widget], size="small")

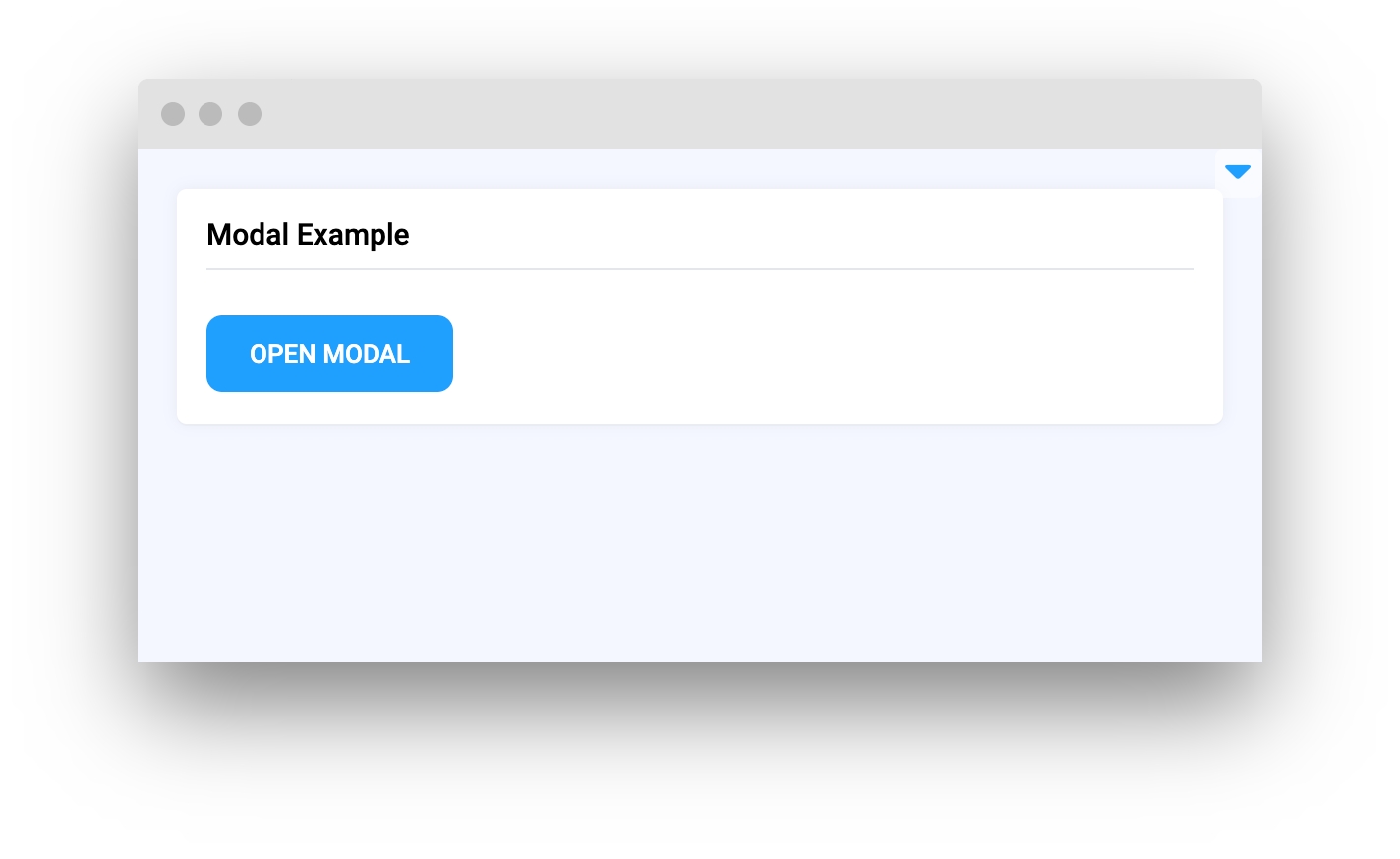

Show modal

### Create app layout

Prepare a layout for the app using `Card` and `Container` widgets.

```python
container = Container(widgets=[modal, button])

layout = Card(
    title="Modal Example",
    content=container,
)

Create app using layout

Create an app object with layout parameter.

app = sly.Application(layout=layout)

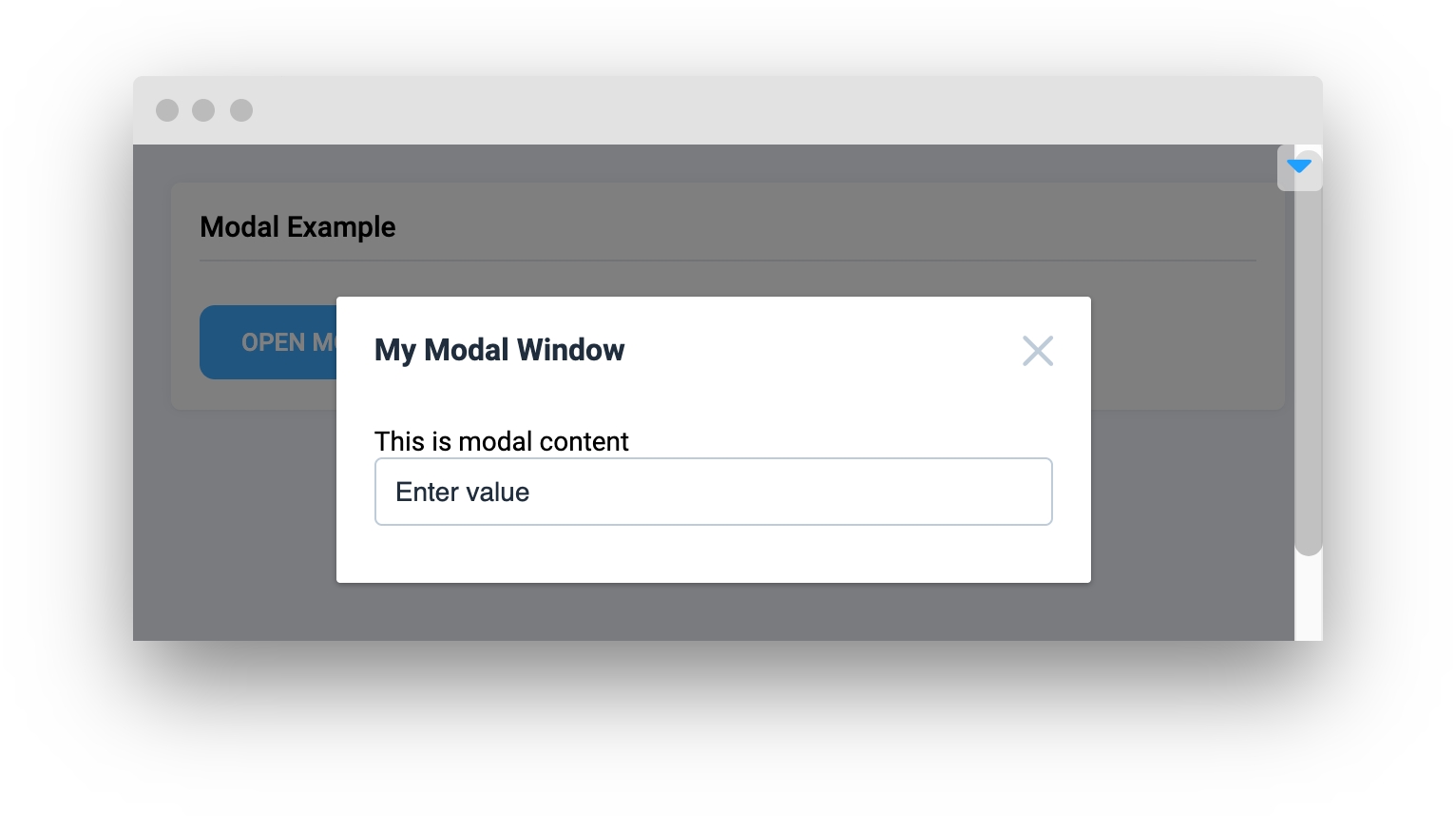

Add button click handler to open modal

@button.click
def on_button_click():
    modal.show()

Add value changed callback to track modal state

@modal.value_changed
def on_value_changed(value):
    print(f"Modal value changed: {value}")
    print("Modal closed")
