How to use default GUI template

PreviousIntroductionNextDefault GUI template customization

Last updated 2 years ago

Was this helpful?

This tutorial demonstrates how to add a basic user interface to your integrated neural network using a default GUI template. As an example, we will consider a repository with an instance segmentation model and transform it to an app with GUI.

interface appearance

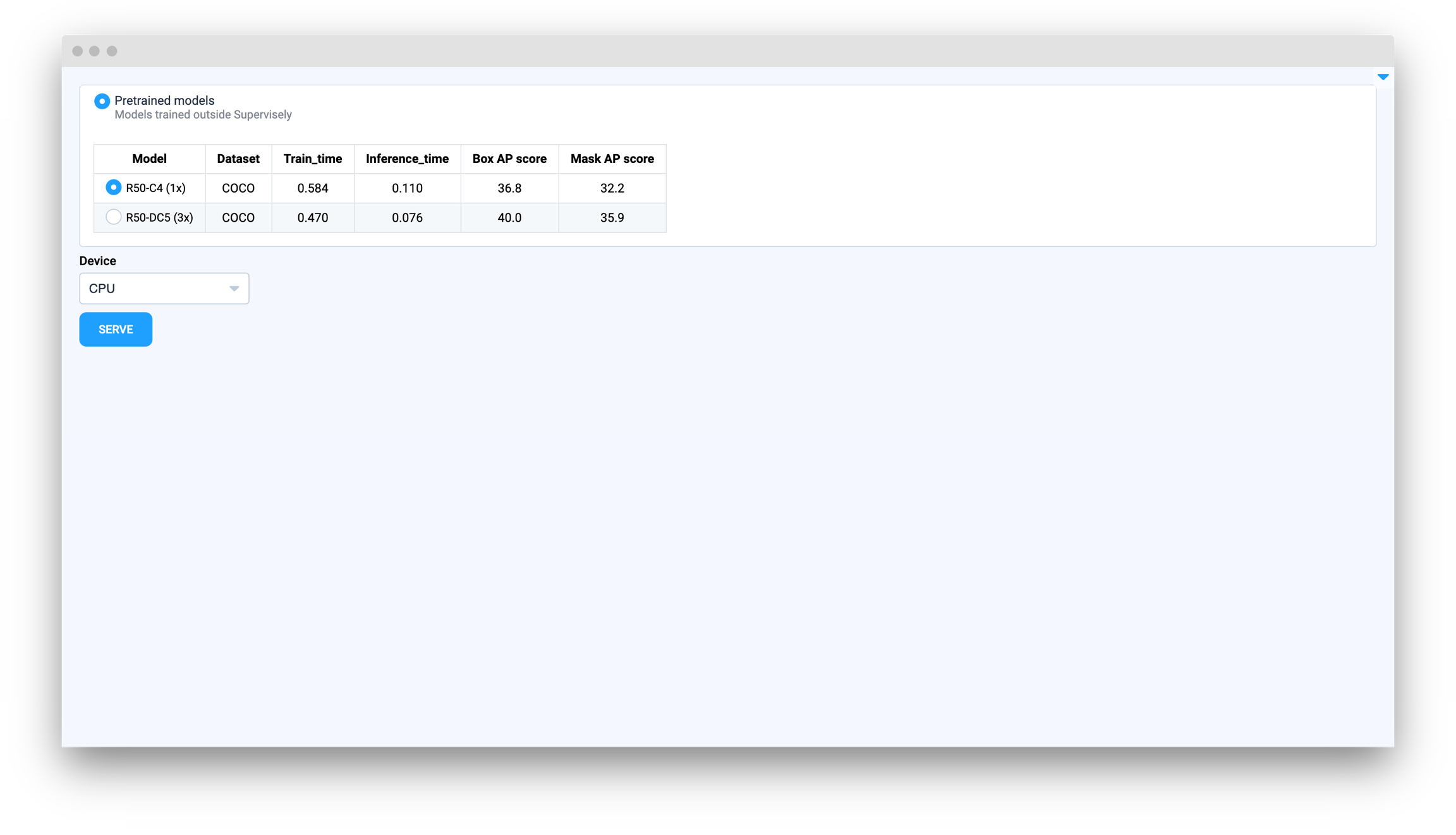

Firstly, let's take a look at how the interface appears:

Table with models info

Developers can provide any model information in a simple form and display it on this table.

Device selector

The template will automatically detect all available devices.

"SERVE" button

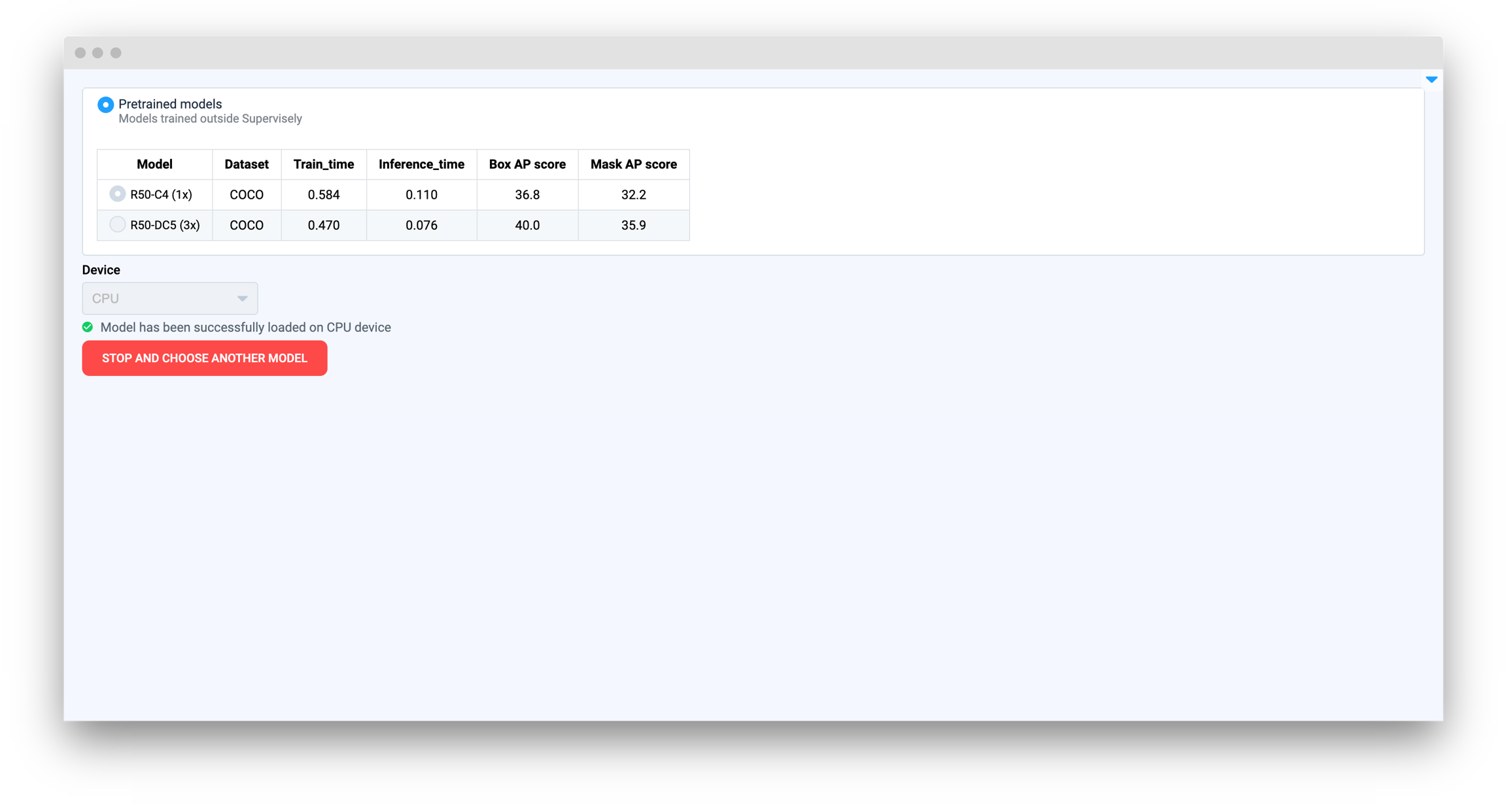

After clicking the button, the model weights downloading process will begin, and you will see a progress bar. After successful downloading, the SERVE button will disappear, and the STOP AND CHOOSE ANOTHER MODEL button will appear instead. You can change the served model without rebooting the session.

Tutorial

Firstly, clone this repository and launch it on your computer to ensure that the code works correctly.

Clone and launch

git clone https://github.com/supervisely-ecosystem/integrate-inst-seg-model
cd integrate-inst-seg-model
./create_venv.sh

Step 3. Open the repository directory in Visual Studio Code.

code -r .

Step 4. Run the debug configuration Local debug with GUI (run model) in VSCode.

Step 5. Open http://0.0.0.0:8000 in your browser (or just click on appeared link in VSCode terminal).

Step 6. Choose and serve the model in the web browser on the selected device.

Step 7. Run the next debug configuration Local debug with GUI (query) in VSCode. For local run, you have to use one script for a model with GUI and another script to create a query with an image to run the inference.

Step 8. Check result image ./demo_data/image_01_prediction.jpg to ensure that everything works correctly.

Implementation details

Apps with an integrated model without and within GUI have a few differences.

  1. To support GUI, you have to provide flag use_gui=True to constructor of your model.

m = MyModel(model_dir=model_dir, custom_inference_settings=settings, use_gui=True)
  1. If you want to place a list of pretrained weights to choose from on the app page, you have to implement the method get_models() which returns list of models to show in the table.

def get_models(self) -> List[Dict[str, str]]:
    mask_rcnn_R_50_C4_1x = {
        "Model": "R50-C4 (1x)",
        "Dataset": "COCO",
        "Train_time": "0.584",
        "Inference_time": "0.110",
        "Box AP score": "36.8",
        "Mask AP score": "32.2",
    }

    mask_rcnn_R_50_DC5_3x = {
        "Model": "R50-DC5 (3x)",
        "Dataset": "COCO",
        "Train_time": "0.470",
        "Inference_time": "0.076",
        "Box AP score": "40.0",
        "Mask AP score": "35.9",
    }
    return [mask_rcnn_R_50_C4_1x, mask_rcnn_R_50_DC5_3x]
  1. Model method load_on_device(model_dir, device) will be called automatically in model with GUI with provided model_dir and device got from user selection in interface. You don't have to call this method manually.

In the example, we have to download weights of selected model. We do this with next strings in load_on_device() methods:

selected_model = self.gui.get_checkpoint_info()
weights_path, config_path = self.download_pretrained_files(selected_model, model_dir)

selected_model gets dict of model data list from get_models() method, corresponding to selected model in GUI.

Method download_pretrained_files() implemented here to download selected model weights and get model config.

Release

In this tutorial, we will show you how to add a user interface to your model app, and we will compare how it works with and without the GUI using the and repositories, respectively.

Step 1. Prepare ~/supervisely.env file with credentials.

Step 2. Clone with source code and create .

To add your serving app with a GUI to Supervisely, follow the same steps as The only difference is that you need to ensure that the headless parameter in your config.json file is set to false or removed.

🔥
Integrate instance segmentation model with GUI repository
Integrate instance segmentation model without GUI
repository
Virtual Environment
the tutorial without GUI
Learn more here.
