Rate

Introduction

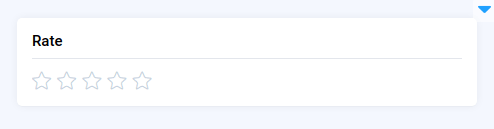

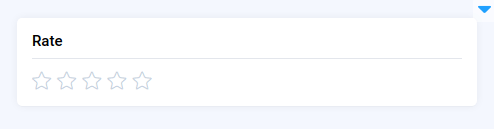

Rate widget in Supervisely that allows users to provide a rating using a graphical interface. It provides a customizable rating scale and supports features like disabling the widget, allowing half ratings, and displaying text labels.

Function signature

Rate(
    value=None,
    max=5,
    disabled=False,
    allow_half=False,
    texts=[],
    show_text=False,
    text_color="#1F2D3D",
    text_template="",
    colors=["#F7BA2A", "#F7BA2A", "#F7BA2A"],
    void_color="#C6D1DE",
    disabled_void_color="#EFF2F7",
    widget_id=None,
)

rate_default

Parameters

Parameters	Type	Description
value	Union[int, float]	Rating score
max	int	Max rating score
disabled	bool	Whether Rate is read-only
allow_half	bool	Whether picking half start is allowed
texts	List[str]	Text array
show_text	bool	Whether to display texts
text_color	str	Color of texts
text_template	str	Text template when the component is read-only
colors	List[str]	Color array for icons
void_color	str	Color of unselected icons
disabled_void_color	str	Color of unselected read-only icons
widget_id	str	ID of the widget

max

Determine max rating score.

type: int

default value: 5

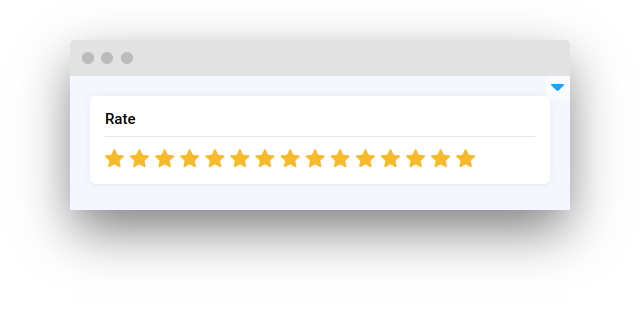

rate = Rate(max=15)

max

colors

Determine color array for icons. It should have 3 elements, each of which corresponds with a score level

type: List[str]

default value: ["#F7BA2A", "#F7BA2A", "#F7BA2A"]

rate = Rate(colors=["#1414E4", "#2DE414", "#F7BA2A"])

colors

disabled

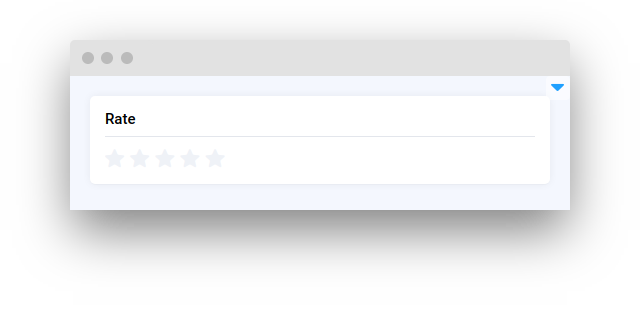

Determine whether Rate is read-only.

type: bool

default value: False

rate = Rate(disabled=True)

disabled

allow_half

Determine whether picking half start is allowed.

type: bool

default value: False

rate = Rate(allow_half=True)

allow_half

texts

Determine text array for each star. Available if show_text is True

type: List[str]

default value: []

show_text

Determine whether to display texts.

type: bool

default value: False

infos = ["oops", "disappointed", "normal", "good", "great"]
rate = Rate(texts=infos, show_text=True)

texts

text_color

Determine color of texts.

type: str

default value: "#1F2D3D"

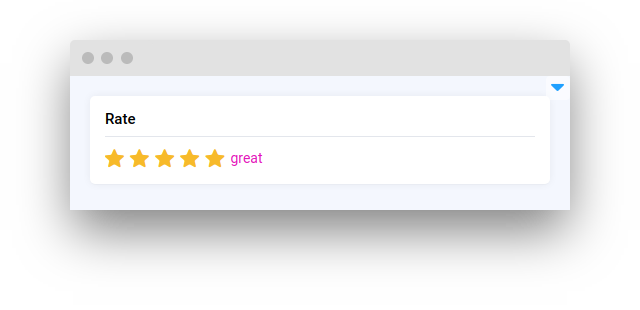

infos = ["oops", "disappointed", "normal", "good", "great"]
rate = Rate(texts=infos, show_text=True, text_color="#E414BB")

text_color

void_color

Determine color of unselected icons.

type: str

default value: "#C6D1DE"

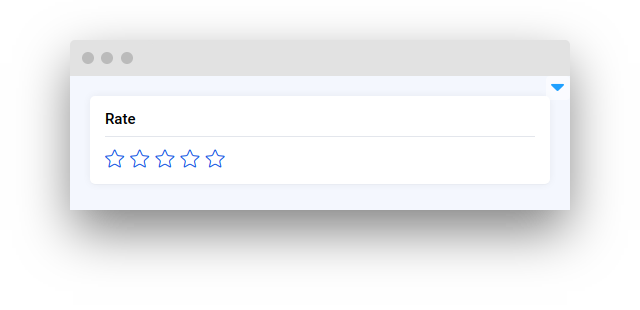

rate = Rate(void_color="#1459E4")

void_color

disabled_void_color

Determine color of unselected read-only icons.

type: str

default value: "#C6D1DE"

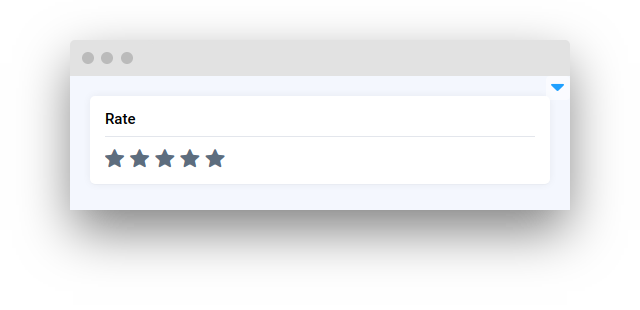

rate = Rate(disabled_void_color="#5D6D7E", disabled=True)

disabled_void_color

Methods and attributes

Attributes and Methods	Description
is_disabled	Property return True if Rate is read-only.
get_value()	Get Rate score value.
set_value(value: Union[int, float])	Set Rate score value.
get_max_value()	Get max rating score.
set_max_value(value: int)	Set max rating score.
get_colors()	Get color array for icons.
set_colors()	Set color array for icons.
disable()	Enable rate`s read-only property.
enable()	Disable rate`s read-only property.
allow_half_precision()	Enable picking half star.
disallow_half_precision()	Disable picking half star.
get_texts()	Return text array for each star.
set_texts(value: List[str])	Set text for each star.
show_text()	Enable displaying texts.
hide_text()	Disable displaying texts.
get_text_color()	Get color of texts.
set_text_color(value: str)	Set color of texts.
get_void_color()	Get color of unselected icons.
set_void_color(value: str)	Set color of unselected icons.
get_disabled_void_color()	Get color of unselected read-only icons.
set_disabled_void_color(value: str)	Set color of unselected read-only icons.
value_changed(func)	Decorator function is handled when input Rate is changed.

Mini App Example

You can find this examples in our Github repository:

supervisely-ecosystem/ui-widgets-demos/status-elements/008_rate/src/main.py

Import libraries

import os

import supervisely as sly
from dotenv import load_dotenv
from supervisely.app.widgets import Button, Card, Container, Field, Input, InputNumber, Rate, Text

Init API client

First, we load environment variables with credentials and init API for communicating with Supervisely Instance:

load_dotenv("local.env")
load_dotenv(os.path.expanduser("~/supervisely.env"))

api = sly.Api()

In this guide, let's look at 3 examples of using the widget Rate in the one app.

Example 1

Initialize Rate widget

infos = ["oops", "disappointed", "normal", "good", "great"]
colors = ["#656565", "#F7BA2A", "#F6568E"]
rate = Rate(
    text_color="#656565",
    disabled=True,
    value=4,
    show_text=True,
    colors=colors,
    max=5,
    text_template="points",
)

Prepare InputNumber, Button and Card widgets we will use in this example

btn = Button("Enable / Disable")

card = Card("Disabled rate", content=Container([rate, btn]))

Add functions to control widgets from python code

@btn.click
def enable_btn_click():
    rate.enable() if rate.is_disabled else rate.disable()

Create app

Prepare a layout for app using Card widget with the content parameter.

layout = Container(widgets=[card])

Create an app object with layout parameter.

app = sly.Application(layout=layout)

layout

Example 2

Initialize Rate widget

colors = ["#656565", "#F7BA2A", "#F6568E"]
rate = Rate(
    text_color="#656565",
    allow_half=True,
    value=4.2,
    show_text=True,
    colors=colors,
)

Prepare InputNumber, Button and Card widgets we will use in this example

btn = Button("Set value")
input_num = InputNumber(value=rate.get_value(), min=0, max=5, step=0.1)

card = Card("Set rating", content=Container([rate, input_num, btn]))

Add functions to control widgets from python code

@btn.click
def set_value_btn_click():
    new_value = input_num.get_value()
    rate.set_value(new_value)

Create app

Prepare a layout for app using Card widget with the content parameter.

layout = Container(widgets=[card])

Create an app object with layout parameter.

app = sly.Application(layout=layout)

layout

Example 3

Initialize Rate widget

infos = ["oops", "disappointed", "normal", "good", "great"]
colors = ["#656565", "#F7BA2A", "#F6568E"]
rate = Rate(
    texts=infos,
    text_color="#656565",
    show_text=True,
    colors=colors,
    void_color="#F6568E",
)

Prepare Input, Field, Text, Button and Card widgets we will use in this example

text_input = Input()
text_field = Field(
    content=text_input,
    title="Enter texts for rate",
    description="Enter 5 string values separated by commas",
)
text = Text(status="text")
btn = Button("Set texts")


card = Card(
    "Rate",
    content=Container([rate, text, text_field, btn]),
)

Add functions to control widgets from python code

@rate.value_changed
def rate_changed(value):
    text.text = f"Rate value: {value} stars"


@btn.click
def set_texts_btn_click():
    text = text_input.get_value()
    if len(text.split()) != 5:
        return
    rate.set_texts(text.split(", "))

Create app

Prepare a layout for app using Card widget with the content parameter.

layout = Container(widgets=[card])

Create an app object with layout parameter.

app = sly.Application(layout=layout)

layout
