  1. App development
  2. Widgets
  3. Tables

RadioTable

PreviousClassicTableNextClassesTable

Last updated 2 years ago

Was this helpful?

Introduction

RadioTable widget in Supervisely is a user interface element that allows creating a table of options, each with a corresponding radio button. With RadioTable widget, developer can define multiple rows of options, and only one row option can be selected. The RadioTable widget provides a convenient and intuitive way to navigate and make selections within the table.

Function signature

RadioTable(
    columns, rows,
    subtitles={},
    column_formatters={},
    widget_id=None,
)

Parameters

Parameters
Type
Description

columns

List[str]

RadioTable columns names

rows

List[List[str]]

RadioTable rows content

subtitles

Union[Dict[str, str], List]

Determine subtitles for columns

column_formatters

Dict

Determine format of output RadioTable

widget_id

str

ID of the widget

columns

Determine RadioTable columns names.

type: List[str]

rows

Determine RadioTable rows content.

type: List[List[str]]

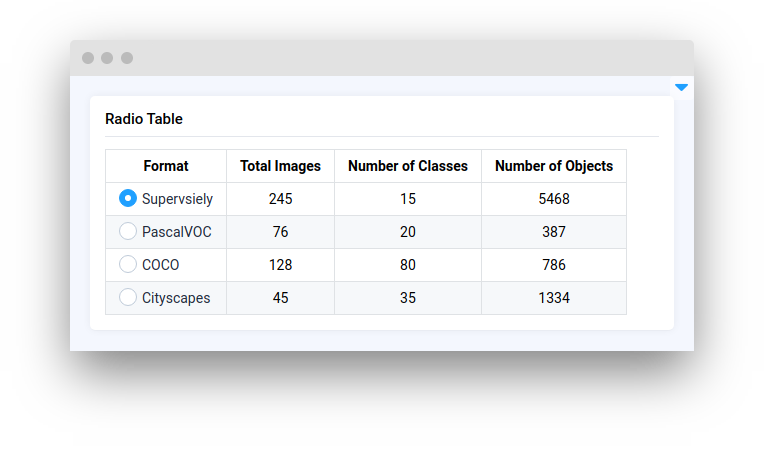

radio_table = RadioTable(
    columns=["Format", "Total Images", "Number of Classes", "Number of Objects"],
    rows=[
        ["Supervisely", "245", "15", "5468"],
        ["PascalVOC", "76", "20", "387"],
        ["COCO", "128", "80", "786"],
        ["Cityscapes", "45", "35", "1334"],
    ]
)

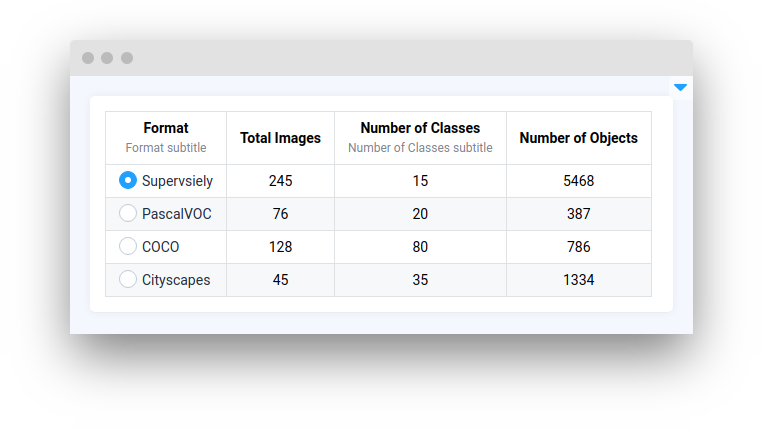

subtitles

Determine subtitles for columns.

type: Union[Dict[str, str], List]

default value: {}

subtitles = {"Format": "Format subtitle", "Number of Classes": "Number of Classes subtitle"}
radio_table = RadioTable(
    columns=["Format", "Total Images", "Number of Classes", "Number of Objects"],
    rows=[
        ["Supervisely", "245", "15", "5468"],
        ["PascalVOC", "76", "20", "387"],
        ["COCO", "128", "80", "786"],
        ["Cityscapes", "45", "35", "1334"],
    ],
    subtitles=subtitles,
)

column_formatters

Determine format of output RadioTable.

type: Dict

default value: {}

widget_id

ID of the widget.

type: str

default value: None

Methods and attributes

Attributes and Methods
Description

columns

Get or set columns property.

subtitles

Get or set subtitles property.

rows

Get or set rows property.

format_value(column_name: str, value: list)

Return column formatter function by given column name.

default_formatter(value: list)

Return default column formatter.

get_selected_row()

Return selected row data.

get_selected_row_index()

Return selected row index.

set_columns(columns: List[str], subtitles: Union[Dict[str, str], List[str]])

Set table columns by given list of column names.

set_data(columns: List[str], rows: List[List[str]], subtitles: Union[Dict[str, str], List[str]])

Set table data.

select_row(row_index: int)

Set row selected by given index. If row with given index does not exist raise ValueError.

@value_changed

Decorator function is handled when widget value is changed

Mini App Example

You can find this example in our Github repository:

Import libraries

import os
import time

import supervisely as sly
from dotenv import load_dotenv
from supervisely.app.widgets import Button, Card, Container, DoneLabel, Progress, RadioTable

Init API client

First, we load environment variables with credentials and init API for communicating with Supervisely Instance:

load_dotenv("local.env")
load_dotenv(os.path.expanduser("~/supervisely.env"))

api = sly.Api()

Initialize RadioTable widget

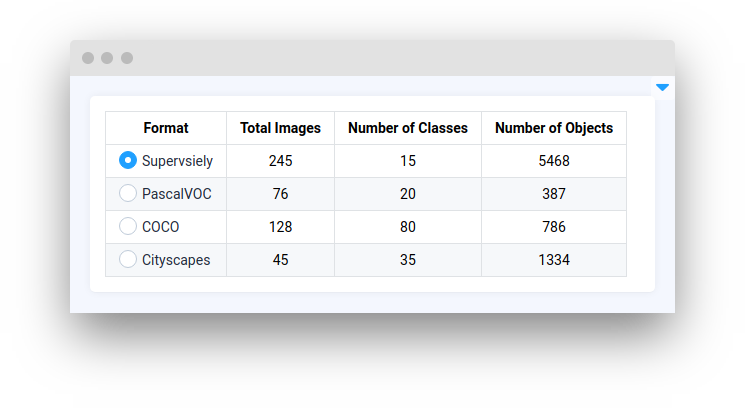

radio_table = RadioTable(
    columns=["Format", "Total Images", "Number of Classes", "Number of Objects"],
    rows=[
        ["Supervisely", "245", "15", "5468"],
        ["PascalVOC", "76", "20", "387"],
        ["COCO", "128", "80", "786"],
        ["Cityscapes", "45", "35", "1334"],
    ],
)

Create additional widgets we will use in UI

button = Button("Button")
progress = Progress(message="processing images", show_percents=True)
progress.hide()

done_label = DoneLabel()
done_label.hide()

Create app layout

Prepare a layout for app using Card widget with the content parameter and place widget that we've just created in the Container widget.

radio_table_card = Card(
    title="Radio Table",
    content=Container([radio_table, button]),
)

progress_card = Card(
    title="Progress",
    content=Container([progress, done_label]),
)

layout = Container(
    widgets=[radio_table_card, progress_card],
    direction="horizontal",
    fractions=[1, 1],
)

layout = Container(widgets=[card])

Create app using layout

Create an app object with layout parameter.

app = sly.Application(layout=layout)

Add functions to control widgets from code

@button.click
def show_progress():
    progress.show()
    selected_row = radio_table.get_selected_row()
    images_count = int(selected_row[1])

    with progress(message="Downloading images from Flickr...", total=images_count) as pbar:
        for _ in range(images_count):
            time.sleep(0.01)
            pbar.update(1)
    done_label.text = f"{images_count} images processed from {selected_row[0]} format data."
    done_label.show()

🔥
ui-widgets-demos/tables/003_radio_table/src/main.py
