DatasetThumbnail

Introduction

DatasetThumbnail widget in Supervisely is a widget that allows to display a thumbnail image that represents supervisely dataset. It is a useful widget for applications that run from specific dataset, allowing users to have quick access to this dataset, so that when the user clicks on the thumbnail, the link will take him to this dataset.

Function signature

DatasetThumbnail(
    project_info=None,
    dataset_info=None,
    show_project_name=True,
    widget_id=None
)

Parameters

Parameters	Type	Description
project_info	ProjectInfo	NamedTuple, containing information about project
dataset_info	DatasetInfo	NamedTuple, containing information about dataset
show_project_name	bool	Determines to display project name
widget_id	str	ID of the widget

project_info

NamedTuple, containing information about project.

type: ProjectInfo

default value: None

project = api.project.get_info_by_id(project_id)
dataset_thumbnail = DatasetThumbnail(project_info=project)

dataset_info

NamedTuple, containing information about dataset.

type: DatasetInfo

default value: None

dataset = api.dataset.get_info_by_id(id=dataset_id)
dataset_thumbnail = DatasetThumbnail(dataset_info=dataset)

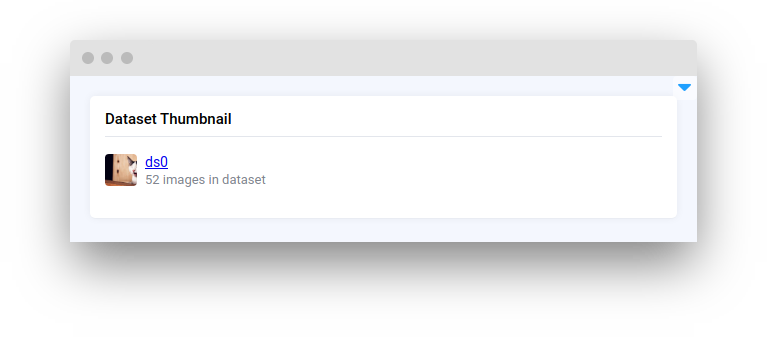

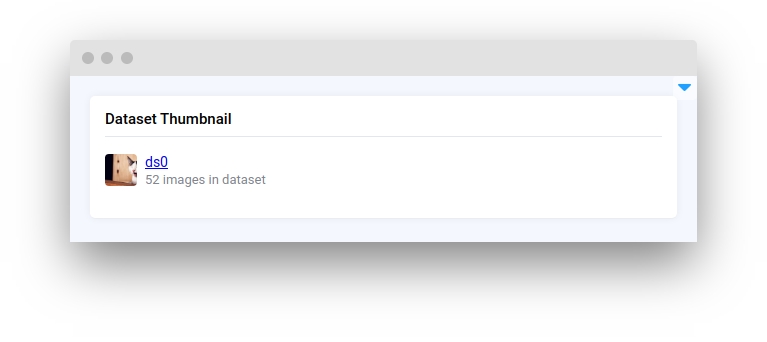

show_project_name

Determines to display project name.

type: bool

default value: True

project = api.project.get_info_by_id(project_id)
dataset = api.dataset.get_info_by_id(dataset_id)
dataset_thumbnail = DatasetThumbnail(
    project_info=project,
    dataset_info=dataset,
    show_project_name=False
)

widget_id

ID of the widget.

type: str

default value: None

Methods and attributes

Attributes and Methods	Description
set(project_info: ProjectInfo, dataset_info: DatasetInfo, show_project_name: bool = True)	Set input project data.

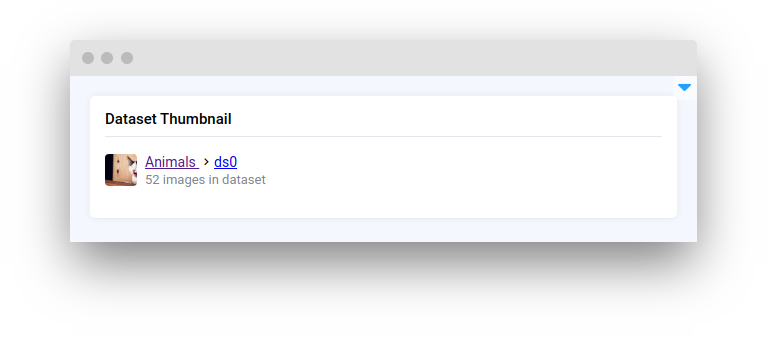

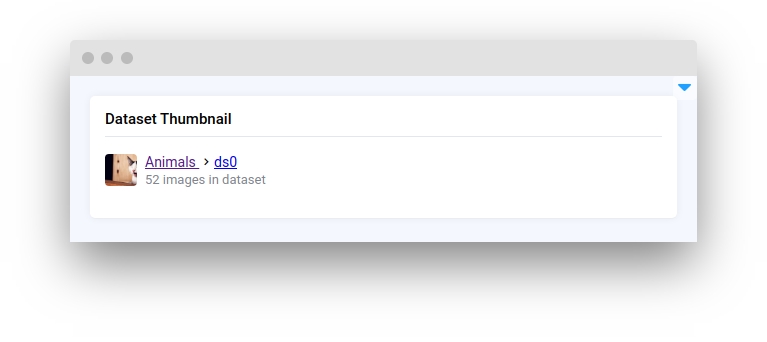

Mini App Example

You can find this example in our Github repository:

ui-widgets-demos/thumbnail/002_dataset_thumbnail/src/main.py

Import libraries

import os

import supervisely as sly
from dotenv import load_dotenv
from supervisely.app.widgets import Card, Container, DatasetThumbnail

Init API client

First, we load environment variables with credentials and init API for communicating with Supervisely Instance:

load_dotenv("local.env")
load_dotenv(os.path.expanduser("~/supervisely.env"))

api = sly.Api()

Get project ID and info

project_id = sly.env.project_id()
project = api.project.get_info_by_id(project_id)

Get dataset ID and info

dataset_id = sly.env.dataset_id()
dataset = api.dataset.get_info_by_id(id=dataset_id)

Initialize DatasetThumbnail widget

dataset_thumbnail = DatasetThumbnail(project_info=project, dataset_info=dataset)

Create app layout

Prepare a layout for app using Card widget with the content parameter and place widget that we've just created in the Container widget.

card = Card(
    title="Dataset Thumbnail",
    content=Container(widgets=[dataset_thumbnail]),
)
layout = Container(widgets=[card])

Create app using layout

Create an app object with layout parameter.

app = sly.Application(layout=layout)
