NotificationBox
Introduction
NotificationBox
is a widget to display messages to the user. It immediately attracts the user's attention and can be used to inform the user about important events, such as the successful completion of a task, errors during execution, or the need to make adjustments to the annotation. NotificationBox supports various levels of messages, such as informational, success, warning, and error.

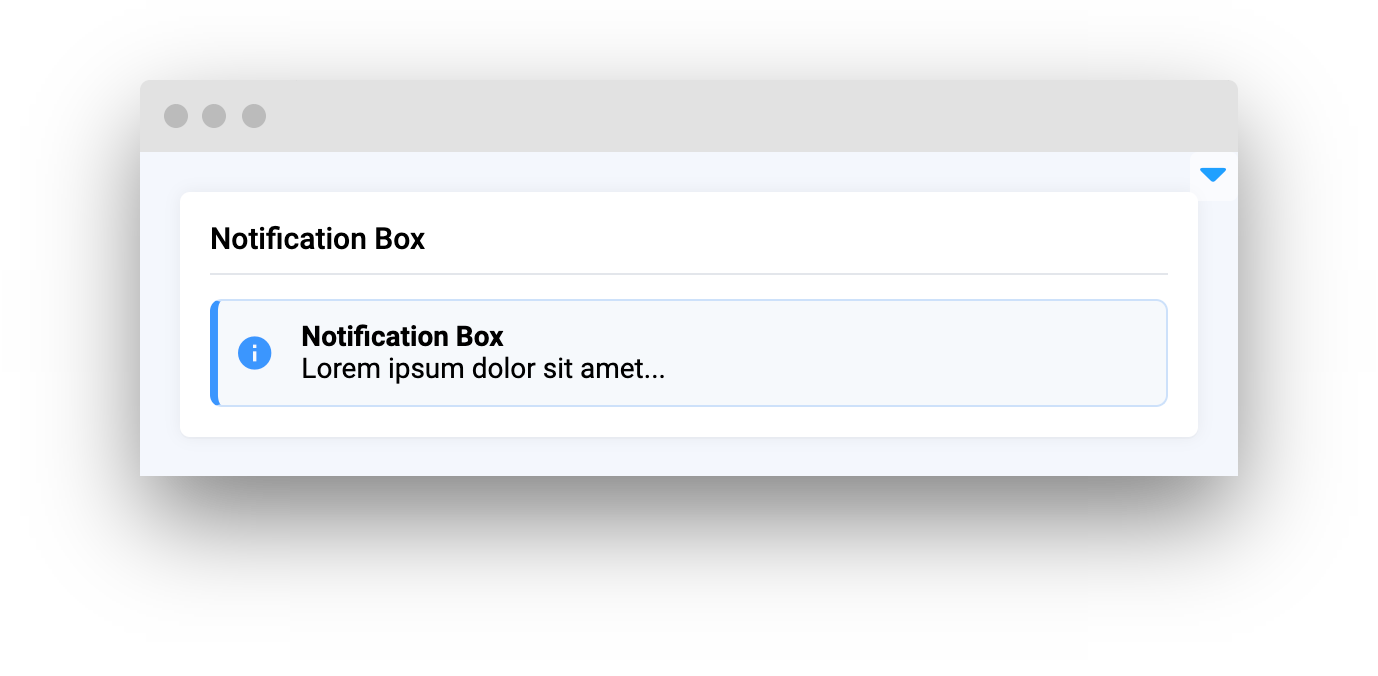

Function signature
note_box = NotificationBox(
title="Notification Box",
description="Lorem ipsum dolor sit amet...",
box_type="info",
widget_id=None
)

Parameters
title
str
Main title of notification box
description
str
Description text
box_type
Literal["success", "info", "warning", "error"]
Notification box style
widget_id
str
ID of the widget

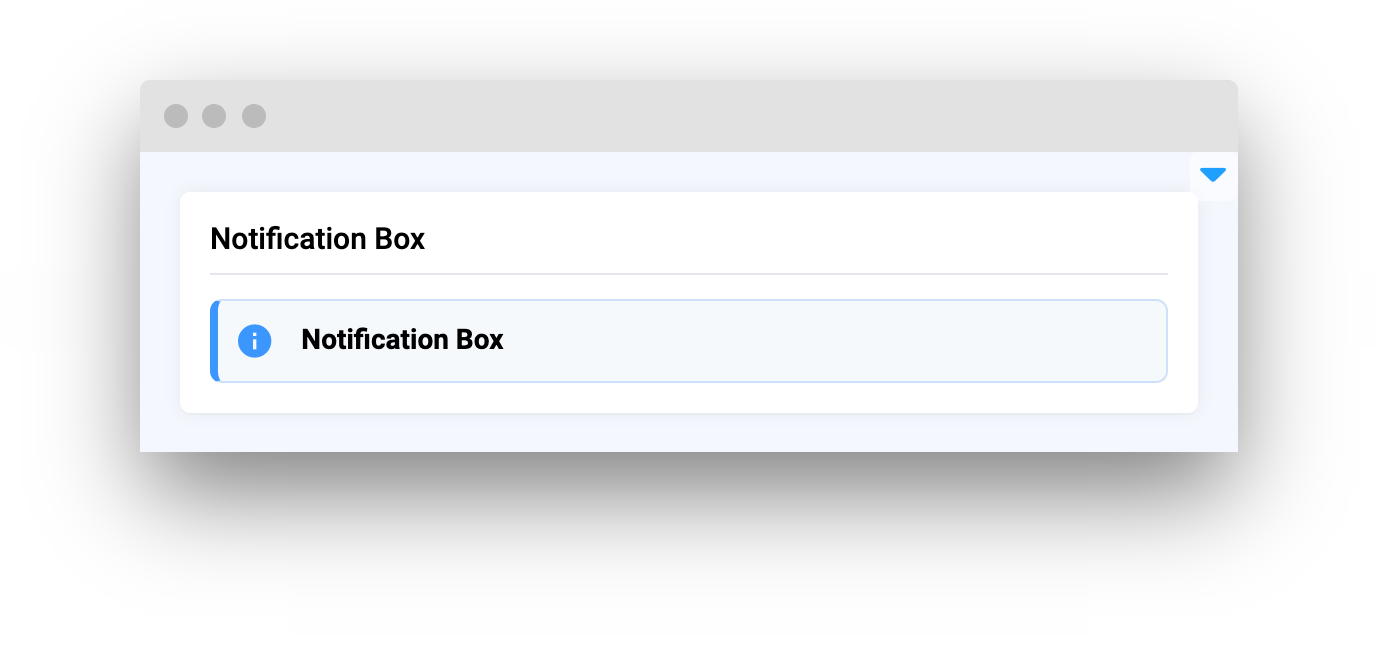

title
Main title of notification box
type: str
default value: None
note_box = NotificationBox(title="Notification Box")

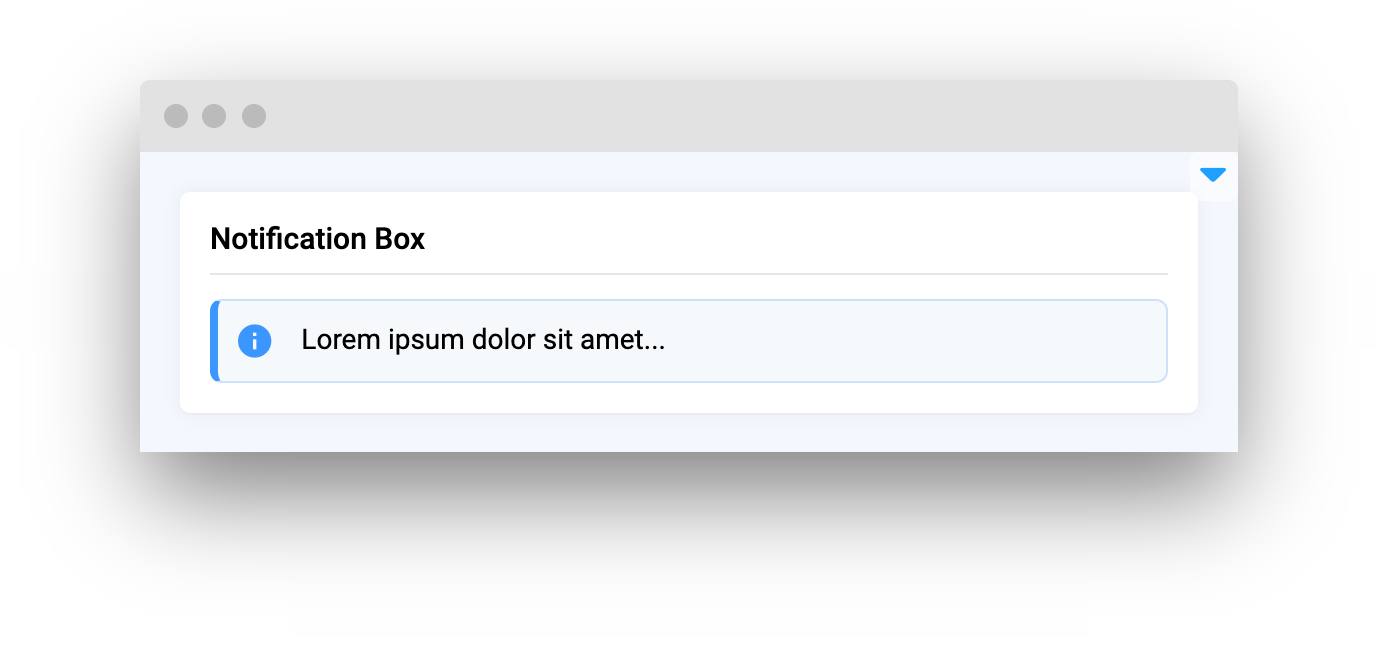

description
Description text
type: str
default value: None
note_box = NotificationBox(description="Lorem ipsum dolor sit amet...")

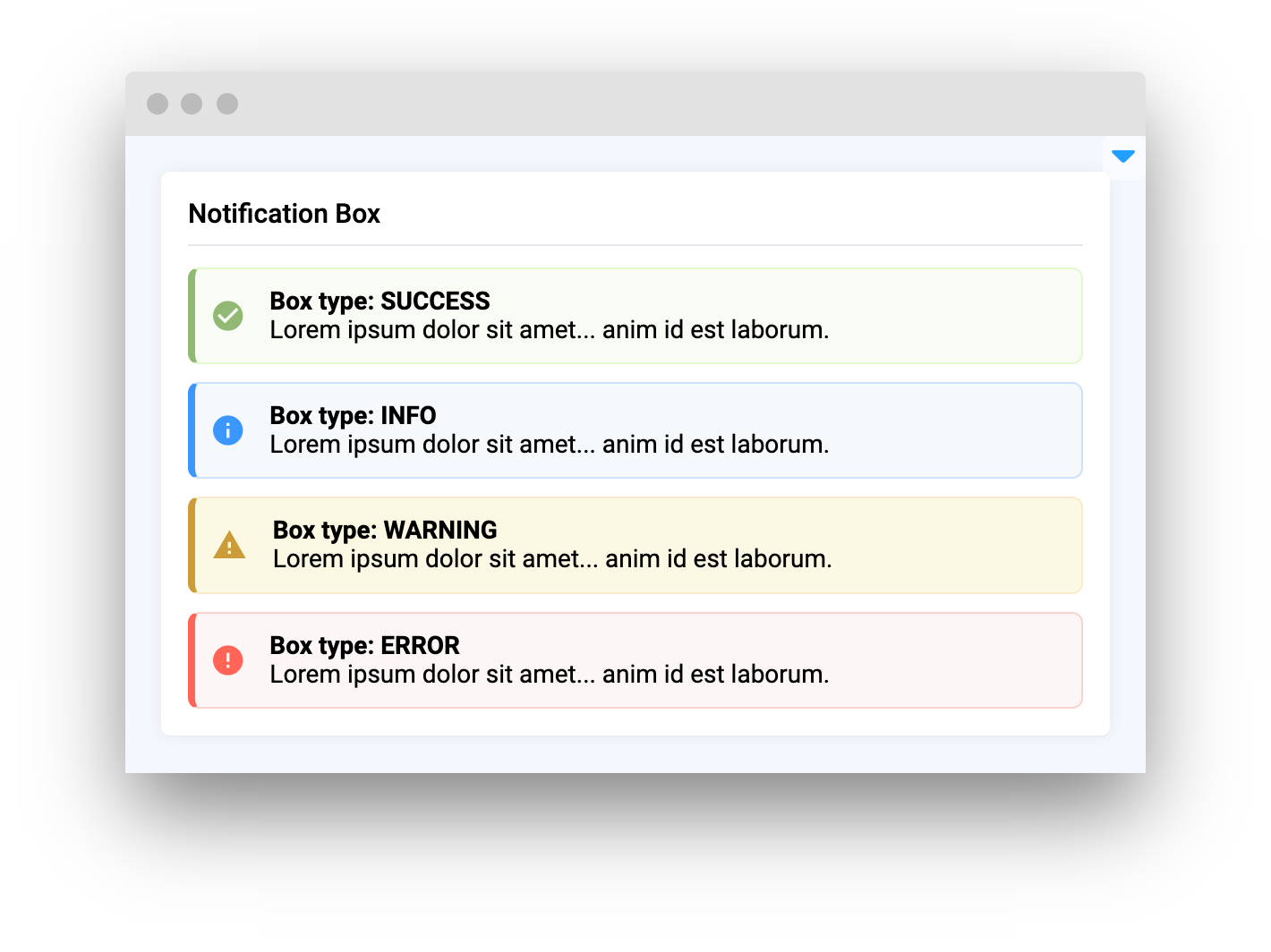

box_type
Parameter to change notification style
type: Literal["success", "info", "warning", "error"]
default value: "info"
note_box_success = NotificationBox(
title="Box type: SUCCESS",
description="Lorem ipsum dolor sit amet... anim id est laborum.",
box_type="success"
)
note_box_info = NotificationBox(
title="Box type: INFO",
description="Lorem ipsum dolor sit amet... anim id est laborum.",
box_type="info"
)
note_box_warning = NotificationBox(
title="Box type: WARNING",
description="Lorem ipsum dolor sit amet... anim id est laborum.",
box_type="warning"
)
note_box_warning = NotificationBox(
title="Box type: WARNING",
description="Lorem ipsum dolor sit amet... anim id est laborum.",
box_type="warning"
)
note_box_error = NotificationBox(
title="Box type: ERROR",
description="Lorem ipsum dolor sit amet... anim id est laborum.",
box_type="error"
)

widget_id
ID of the widget.
type: str
default value: None
Methods and attributes
title
Get or set notification box title
property.
description
Get or set notification box description
property.
set(title: str, description: str)
Set title
and description
properties.

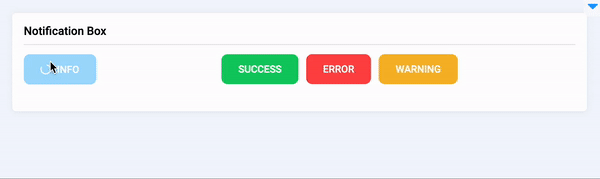

Mini App Example
You can find this example in our Github repository:
ui-widgets-demos/status elements/002_notification_box/src/main.py
Import libraries
import os
from time import sleep
import supervisely as sly
from dotenv import load_dotenv
from supervisely.app.widgets import Button, Card, Container, Flexbox, NotificationBox
Init API client
First, we load environment variables with credentials and init API for communicating with Supervisely Instance:
load_dotenv("local.env")
load_dotenv(os.path.expanduser("~/supervisely.env"))
api = sly.Api()
Initialize NotificationBox
widget
NotificationBox
widgetIn this tutorial we will use 4 types of notification box.
note_box_info = NotificationBox()
note_box_info.hide() # hide widget (you can show it later)
note_box_success = NotificationBox(title="Finished.", box_type="success")
note_box_success.hide()
note_box_error = NotificationBox(title="Error.", box_type="error")
note_box_error.hide()
note_box_warning = NotificationBox(title="Warning.", box_type="warning")
note_box_warning.hide()
Create app layout
For 1 example we will create project and show notication with info
box type
step_1_btn = Button(text="INFO", button_type="info")
For 2 example we will use Progress
widget and show success
box type notification.
progress_bar = sly.app.widgets.Progress()
step_2_btn = Button(text="SUCCESS", button_type="success")
step_2 = Container(widgets=[note_box_success, step_2_btn])
Create buttons for error
and warning
box type notifications.
step_3_btn = Button(text="ERROR", button_type="danger")
step_3 = Container(widgets=[note_box_error, step_3_btn])
step_4_btn = Button(text="WARNING", button_type="warning")
step_4 = Container(widgets=[note_box_warning, step_4_btn])
Prepare a layout for app using Card
widget with the content
parameter and place widgets that we've just created in the Container
or Flexbox
widgets.
step_1_container = Container(widgets=[step_1_btn, note_box_info])
notes_container = Flexbox(widgets=[note_box_success, note_box_error, note_box_warning])
btns_container = Container(
widgets=[step_2_btn, step_3_btn, step_4_btn],
direction="horizontal",
)
progress_container = Container(widgets=[btns_container, progress_bar, notes_container])
container = Container(
widgets=[step_1_container, progress_container],
direction="horizontal",
)
card = Card(
title="Notification Box",
content=container,
)
layout = Container(widgets=[card])
Create app using layout
Create an app object with layout parameter.
app = sly.Application(layout=layout)
Add functions to control widgets from python code
@step_1_btn.click
def create_project_and_dataset():
project = api.project.create(
workspace_id=workspace_id,
name="New project",
type=sly.ProjectType.IMAGES,
change_name_if_conflict=True,
)
if project is not None:
note_box_info.set(
title="New project and dataset created.",
description=f"Project ID: {project.id}).",
)
note_box_info.show()
@step_2_btn.click
def start_progress():
note_box_warning.hide()
note_box_error.hide()
with progress_bar(message="Processing items...", total=5) as pbar:
for _ in range(5):
sleep(1)
pbar.update(1)
note_box_success.show()
@step_3_btn.click
def show_error():
note_box_success.hide()
note_box_warning.hide()
note_box_error.show()
@step_4_btn.click
def show_warning():
note_box_success.hide()
note_box_error.hide()
note_box_warning.show()
