Text

PreviousText ElementsNextTextArea

Last updated 1 year ago

Was this helpful?

Introduction

Text widget in Supervisely is used to display text with different styles, such as "text", "info", "success", "warning", or "error". Content and style of the text can be easily changed drom code. The Text widget is useful for presenting informative messages or status updates to users, and can be combined with other widgets to create more complex interfaces.

Function signature

Text(
    text=None,
    status="text",
    widget_id=None,
)

Parameters

Parameters
Type
Description

text

str

Determine displayed text

status

Literal["text", "info", "success", "warning", "error"]

Message status

color

str

Text color in hex format

font_size

int

Size of the font in pixels

widget_id

str

ID of the widget

text

Determine displayed text.

type: str

default value: None

text = Text(text="My text")

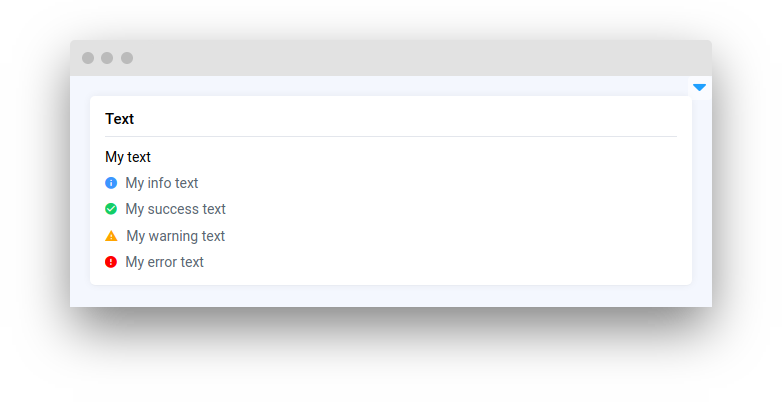

status

Text status.

type: str

default value: text

text = Text(text="My text", status="text")
text_info = Text(text="My info text", status="info")
text_success = Text(text="My success text", status="success")
text_warning = Text(text="My warning text", status="warning")
text_error = Text(text="My error text", status="error")

color

Text color in hex format.

type: str

default value: None

colored_text = Text(
    text="Yellow",
    status="text",
    color="#FFC107",
    font_size=22,
)

font_size

Size of the font in pixels.

type: int

default value: 14

text14 = Text(text="Font size: 14", status="text", font_size=14)
text32 = Text(text="Font size: 32", status="text", font_size=32)

widget_id

ID of the widget.

type: str

default value: None

Methods and attributes

Attributes and Methods
Description

text

Get or set text property.

status

Get or set status property.

color

Get or set color property.

set()

Set text value and status to widget.

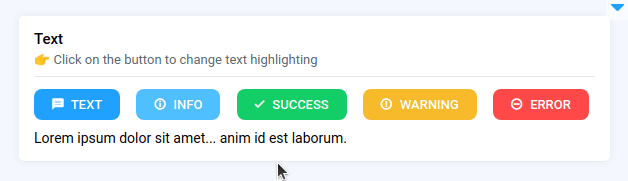

Mini App Example

You can find this example in our Github repository:

Import libraries

import os

import supervisely as sly
from dotenv import load_dotenv
from supervisely.app.widgets import Button, Card, Container, Text

Init API client

Init API for communicating with Supervisely Instance. First, we load environment variables with credentials:

load_dotenv("local.env")
load_dotenv(os.path.expanduser("~/supervisely.env"))
api = sly.Api()

Initialize five Button widgets for each type of text message: text, info, success, warning, error

button_show_text = Button(
    text="Text",
    button_type="primary",
    button_size="small",
    icon="zmdi zmdi-comment-text",
)
button_show_info = Button(
    text="Info",
    button_type="info",
    button_size="small",
    icon="zmdi zmdi-info-outline",
)
button_show_success = Button(
    text="Success",
    button_type="success",
    button_size="small",
    icon="zmdi zmdi-check",
)
button_show_warning = Button(
    text="Warning",
    button_type="warning",
    button_size="small",
    icon="zmdi zmdi-alert-circle-o",
)
button_show_error = Button(
    text="Error",
    button_type="danger",
    button_size="small",
    icon="zmdi zmdi-minus-circle-outline",
)

Initialize Container widget

Create Container widget for all buttons.

buttons_container = Container(
    widgets=[
        button_show_text,
        button_show_info,
        button_show_success,
        button_show_warning,
        button_show_error,
    ],
    direction="horizontal",
)

Initialize Text widget with text and status

text = Text(
    text="Lorem ipsum dolor sit amet... anim id est laborum.",
    status="text",
)

Create app layout

Prepare a layout for app using Card widget with the content parameter and place 2 widgets that we've just created in the Container widget. Place order in the Container is important, we want the message text to be displayed below the buttons.

card = Card(
    title="Text",
    description="👉 Click on the button to change text highlighting",
    content=Container(widgets=[buttons_container, text]),
)
layout = Container(widgets=[card], direction="vertical")

Create app using layout

Create an app object with layout parameter.

app = sly.Application(layout=layout)

Our app layout is ready.

Start text status change with button click

Use the decorator as shown below to handle button click. Text will be updating it status after pressing corresponding button.

@button_show_text.click
def show_text():
    text.status = "text"
@button_show_info.click
def show_info():
    text.status = "info"
@button_show_success.click
def show_success():
    text.status = "success"
@button_show_warning.click
def show_warning():
    text.status = "warning"
@button_show_error.click
def show_error():
    text.status = "error"

🔥
ui-widgets-demos/text elements/001_text/src/main.py
