  1. App development
  2. Widgets
  3. Media

ObjectClassView

PreviousIconsNextObjectClassesList

Last updated 1 year ago

Was this helpful?

Introduction

ObjectClassView is a widget in Supervisely that displays a single object class and provides a convenient way to view the name, color, as well as the icon and shape type of the class.

Function signature

obj_class_view = ObjectClassView(
    obj_class=sly.ObjClass("cat", sly.Bitmap, [255, 0, 0]),
    show_shape_text=True,
    show_shape_icon=True,
    widget_id=None
)

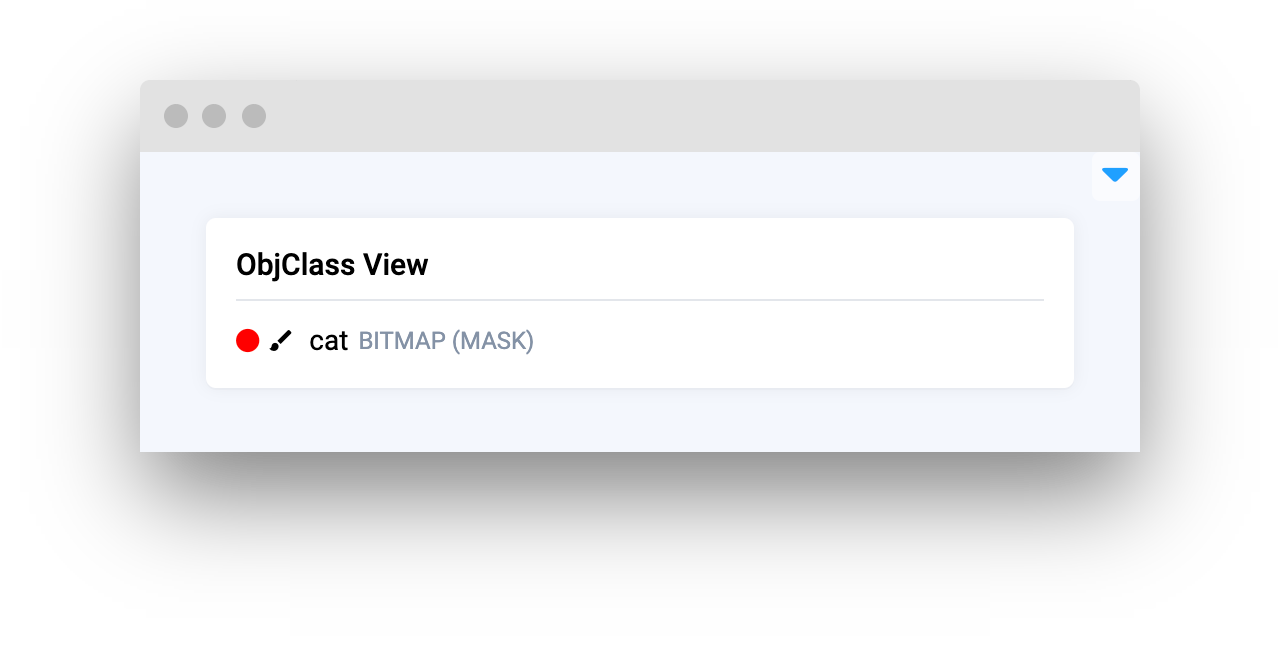

objclass-default

Parameters

Parameters
Type
Description

obj_class

ObjClass

Supervisely object class

show_shape_text

bool

If True display shape text

show_shape_icon

bool

If True display shape icon

widget_id

str

ID of the widget

obj_class

Supervisely object class

type: ObjClass

obj_class = sly.ObjClass(
    name="cat",
    geometry_type=sly.Bitmap,
    color=[255, 0, 0]
)

obj_class_view = ObjectClassView(obj_class=obj_class)

show_shape_text

Display shape text of object class

type: bool

default value: True

obj_class_view = ObjectClassView(
    obj_class=obj_class,
    show_shape_text=False
)

show_shape_icon

Display object class icon

type: bool

default value: False

obj_class_view = ObjectClassView(
    obj_class=obj_class,
    show_shape_icon=True
)

widget_id

ID of the widget.

type: str

default value: None

Mini App Example

You can find this example in our Github repository:

Import libraries

import os

import supervisely as sly
from dotenv import load_dotenv
from supervisely.app.widgets import Card, Container, Field, ObjectClassView, ProjectThumbnail

Init API client

First, we load environment variables with credentials and init API for communicating with Supervisely Instance:

load_dotenv("local.env")
load_dotenv(os.path.expanduser("~/supervisely.env"))

api = sly.Api()

Initialize Project ID we will use

project_id = sly.env.project_id()

Get Project info and meta from server

project_info = api.project.get_info_by_id(id=project_id)
project_meta = api.project.get_meta(id=project_id)

Prepare ObjClass for each class in project

Prepare dictionary to get geometry type by geometry name

SHAPES_TYPES = {
    "any": sly.AnyGeometry,
    "bitmap": sly.Bitmap,
    "point": sly.Point,
    "polygon": sly.Polygon,
    "rectangle": sly.Rectangle,
    "line": sly.Polyline,
}

create ObjClass for each class in project

classes = [
    sly.ObjClass(
        name=obj["title"],
        geometry_type=SHAPES_TYPES[obj["shape"]],
    )
    for obj in project_meta["classes"]
]

Create ObjClassCollection from ObjClasses

classes = sly.ObjClassCollection(classes)

Initialize ObjectClassView widget

In this tutorial we will create list of ObjectClassView objects for each class in project.

obj_class_view = [
    ObjectClassView(
        obj_class=obj_class,
        show_shape_text=True,
        show_shape_icon=True,
    )
    for obj_class in classes
]

Create app layout

Prepare a layout for app using Card, Field widgets with the content parameter and place widgets that we've just created in the Container widget.

obj_class_container = Container(widgets=obj_class_view)
obj_class_field = Field(
    content=obj_class_container,
    title="Project classes:",
)

project_thumbnail = ProjectThumbnail(project_info)

card = Card(
    title="ObjectClassView",
    content=Container(widgets=[project_thumbnail, obj_class_field]),
)
layout = Container(widgets=[card])

Create app using layout

Create an app object with layout parameter.

app = sly.Application(layout=layout)

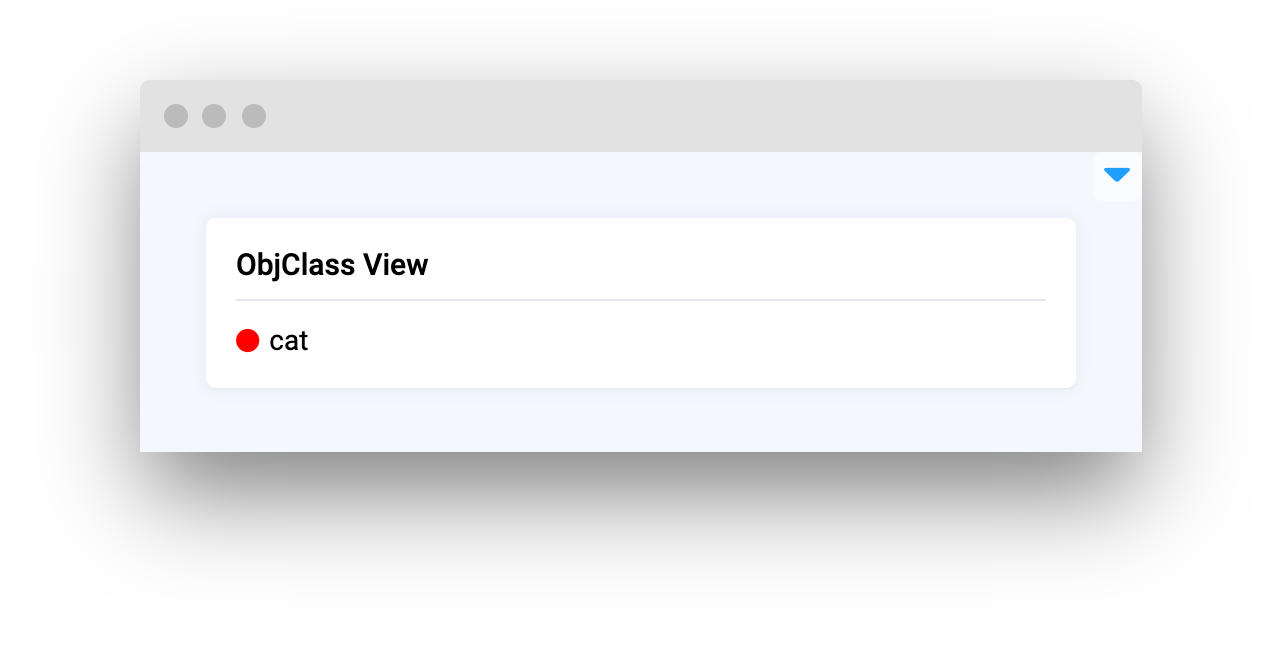

objclass-show-text
objclass-show-icon

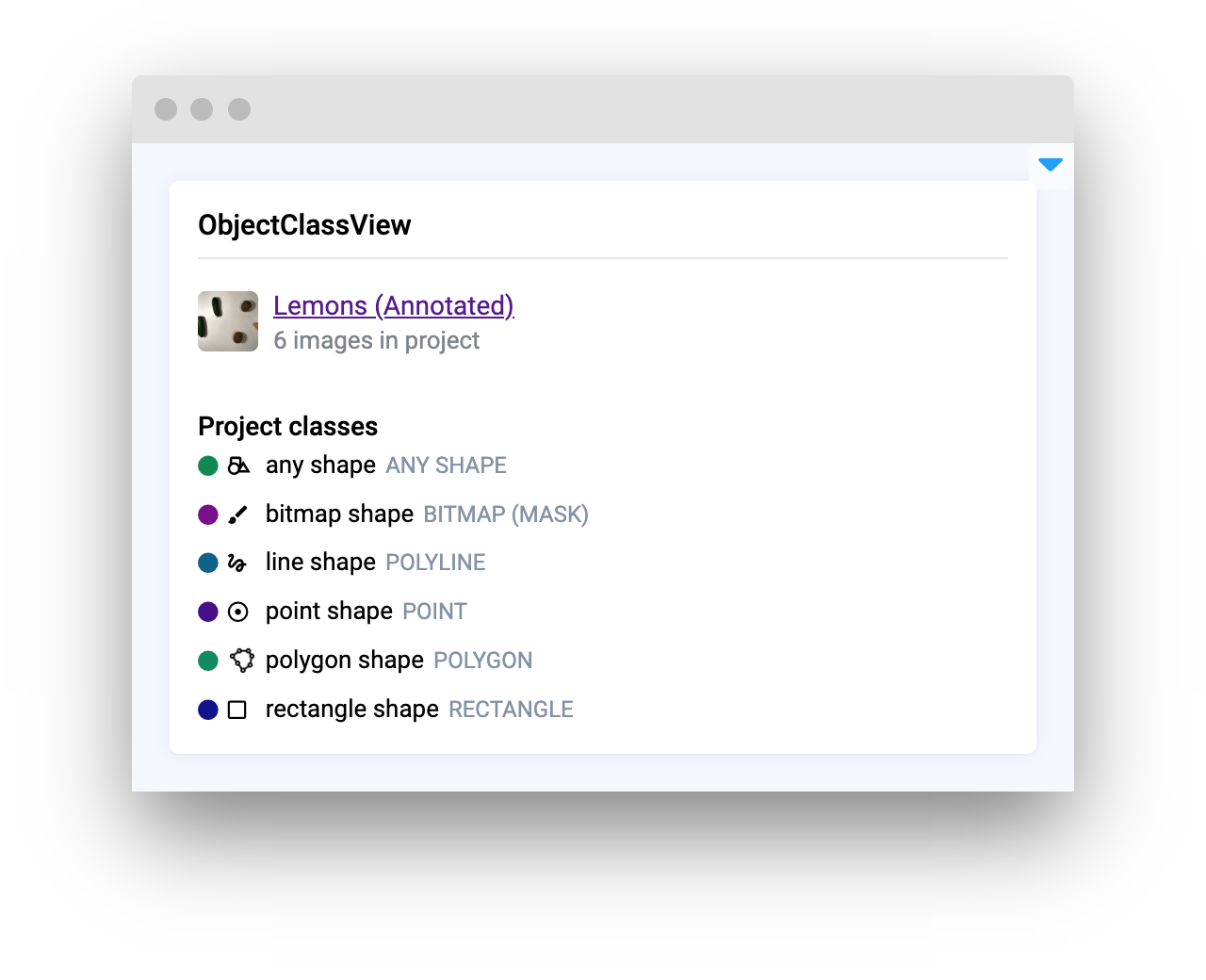

objclassview-app
🔥
supervisely-ecosystem/ui-widgets-demos/media/009_object_class_view/src/main.py
