TrainValSplits

PreviousSliderNextFileStorageUpload

Last updated 1 year ago

Was this helpful?

Introduction

TrainValSplits widget in Supervisely is a tool that helps with the creation of training and validation datasets. The widget allows for easy splitting of the original dataset into training and validation sets based on customizable parameters such as percentage split or based on datasets or specific tag. TrainValSplits helps improve the performance of machine learning models by ensuring that they are trained on diverse and representative data.

Function signature

TrainValSplits(
    project_id=None,
    project_fs=None,
    random_splits=True,
    tags_splits=True,
    datasets_splits=True,
    widget_id=None,
)
default

Parameters

Parameters
Type
Description

project_id

int

Input Project ID

project_fs

str

Path to input Project on local host

random_splits

bool

Shuffle data and split with defined probability

tags_splits

bool

Images should have assigned train or val tag

datasets_splits

bool

Select one or several datasets for every split

widget_id

str

ID of the widget

project_id

Determine input Project ID.

type: int

default value: None

splits = TrainValSplits(project_id=project_id)

project_fs

Determine path to input Project on local host.

type: str

default value: None

project_dir = os.path.join(sly.app.get_data_dir(), project_info.name)
sly.Project.download(api, project_id, project_dir)
project_fs = sly.Project(project_dir, sly.OpenMode.READ)

splits = TrainValSplits(project_fs=project_fs)

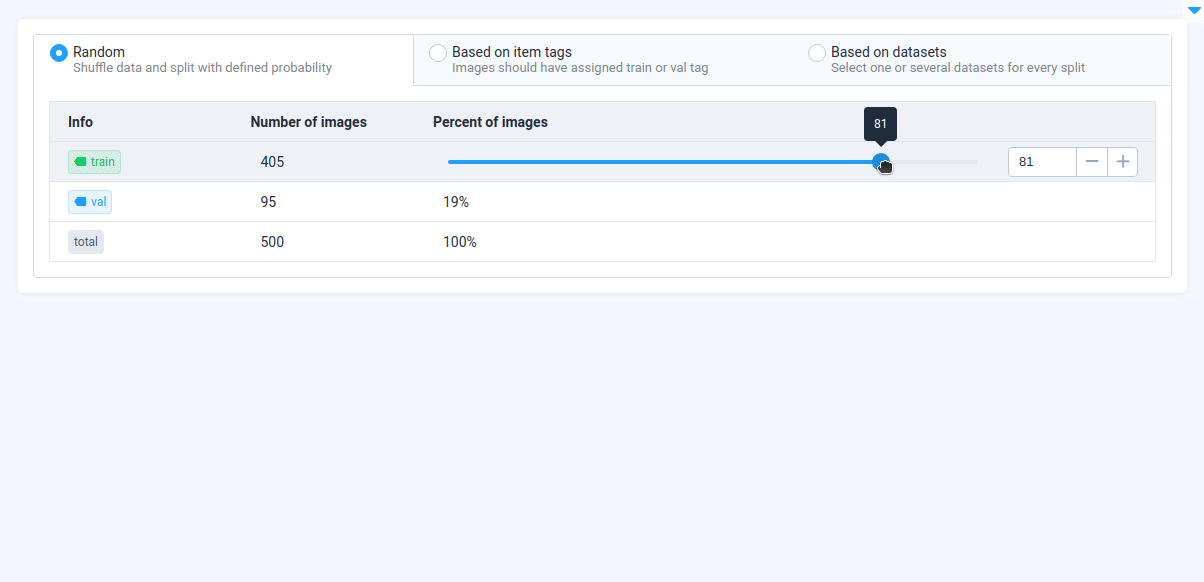

random_splits

Shuffle data and split with defined probability.

type: bool

default value: true

splits = TrainValSplits(
    project_id=project_id,
    random_splits=False,
)

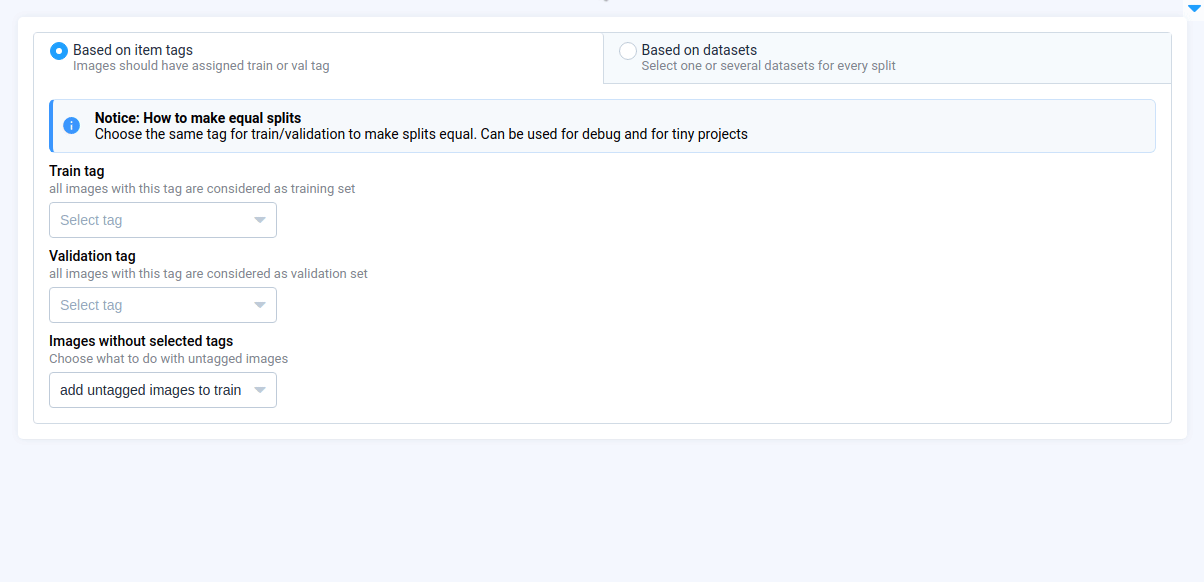

tags_splits

Images should have assigned train or val tag.

type: bool

default value: true

splits = TrainValSplits(
    project_id=project_id,
    tags_splits=False,
)

datasets_splits

Select one or several datasets for every split.

type: bool

default value: true

splits = TrainValSplits(
    project_id=project_id,
    datasets_splits=False,
)

widget_id

ID of the widget.

type: str

default value: None

Methods and attributes

Attributes and Methods
Description

get_splits()

Return result train/val split.

disable()

Disable widget.

enable()

Enable widget.

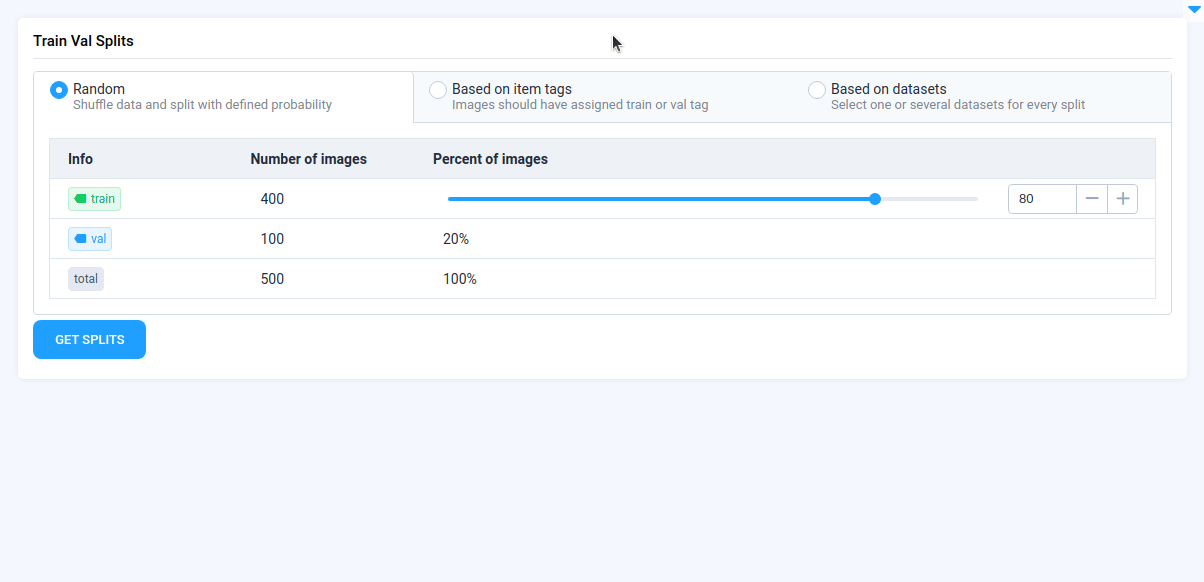

Mini App Example

You can find this example in our Github repository:

Import libraries

import os

import supervisely as sly
from dotenv import load_dotenv
from supervisely.app.widgets import Card, Container, TrainValSplits, Button, Text

Init API client

First, we load environment variables with credentials and init API for communicating with Supervisely Instance:

load_dotenv("local.env")
load_dotenv(os.path.expanduser("~/supervisely.env"))

api = sly.Api()

Prepare project_id, download project and create project_fs

project_id = sly.env.project_id()
project_info = api.project.get_info_by_id(project_id)
project_dir = os.path.join(sly.app.get_data_dir(), project_info.name)
sly.fs.remove_dir(project_dir)
sly.Project.download(api, project_id, project_dir)
project_fs = sly.Project(project_dir, sly.OpenMode.READ)

Initialize TrainValSplits widget

splits = TrainValSplits(project_fs=project_fs)

Initialize Button and Text widget we will use

button = Button("Get splits")
text = Text("")
text.hide()

Create app layout

Prepare a layout for app using Card widget with the content parameter and place widget that we've just created in the Container widget.

card = Card(
    title="Train Val Splits",
    content=Container([splits, button, text], gap=5),
)
layout = Container(widgets=[card])

Create app using layout

Create an app object with layout parameter.

app = sly.Application(layout=layout)

Add function to control widgets from python code

@button.click
def get_splits():
    train_set, val_set = splits.get_splits()
    text.text = f"Train split: {len(train_set)} images, Val split: {len(val_set)} images"
    text.show()
default
random_splits
tags_splits
datasets_splits

layout
🔥
supervisely-ecosystem/ui-widgets-demos/controls/006_train_val_splits/src/main.py
