Introduction

In this tutorial we will focus on working with videos using Supervisely SDK.

You will learn how to:

📗 Everything you need to reproduce : source code and demo data.

How to debug this tutorial

Step 1. Prepare ~/supervisely.env file with credentials.

git clone https://github.com/supervisely-ecosystem/tutorial-video.git

cd tutorial-video

./create_venv.sh

Step 3. Open repository directory in Visual Studio Code.

code -r .

Step 4. Change workspace ID in local.env file by copying the ID from the context menu of the workspace.

WORKSPACE_ID=654 # ⬅️ change value

Step 5. Start debugging src/main.py.

Import libraries

import os
from dotenv import load_dotenv
from pprint import pprint
import supervisely as sly

Init API client

First, we load environment variables with credentials and init API for communicating with Supervisely Instance.

if sly.is_development():
    load_dotenv("local.env")
    load_dotenv(os.path.expanduser("~/supervisely.env"))
api = sly.Api()

Get variables from environment

workspace_id = sly.env.workspace_id()

Create new project and dataset

Create new project.

Source code:

project = api.project.create(
    workspace_id, "Animals", type=ProjectType.VIDEOS, change_name_if_conflict=True
)

print(f"Project ID: {project.id}")

Output:

# Project ID: 15599

Create new dataset.

Source code:

dataset = api.dataset.create(project.id, "Birds")

print(f"Dataset ID: {dataset.id}")

Output:

# Dataset ID: 53465

Upload videos from local directory to Supervisely

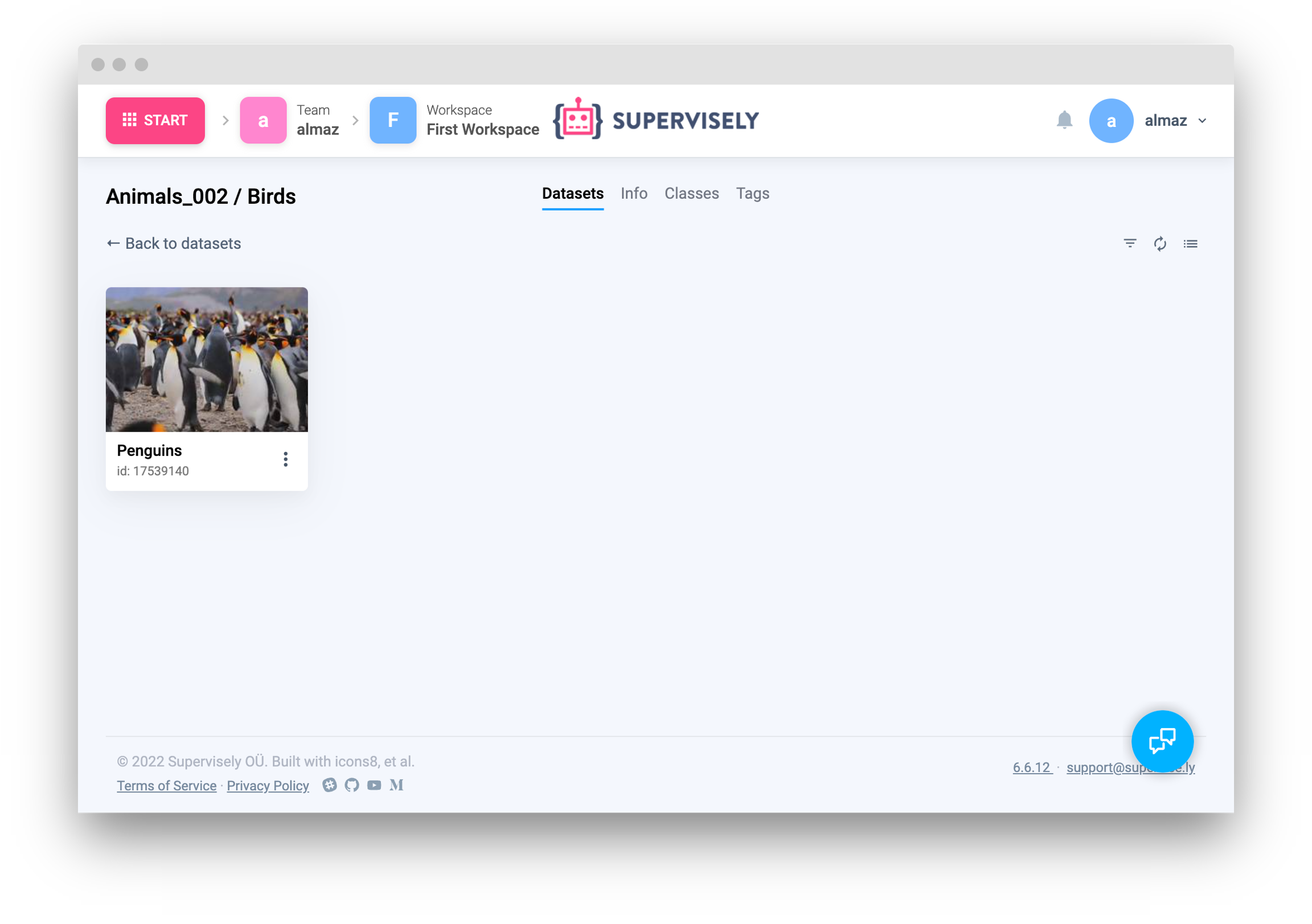

Upload single video.

Source code:

original_dir = "src/videos/original"
path = os.path.join(original_dir, "Penguins.mp4")

video = api.video.upload_path(
    dataset.id,
    name="Penguins",
    path=path
)

print(f'Video "{video.name}" uploaded to Supervisely with ID:{video.id}')

Output:

# Video "Penguins" uploaded to Supervisely platform with ID:17539140

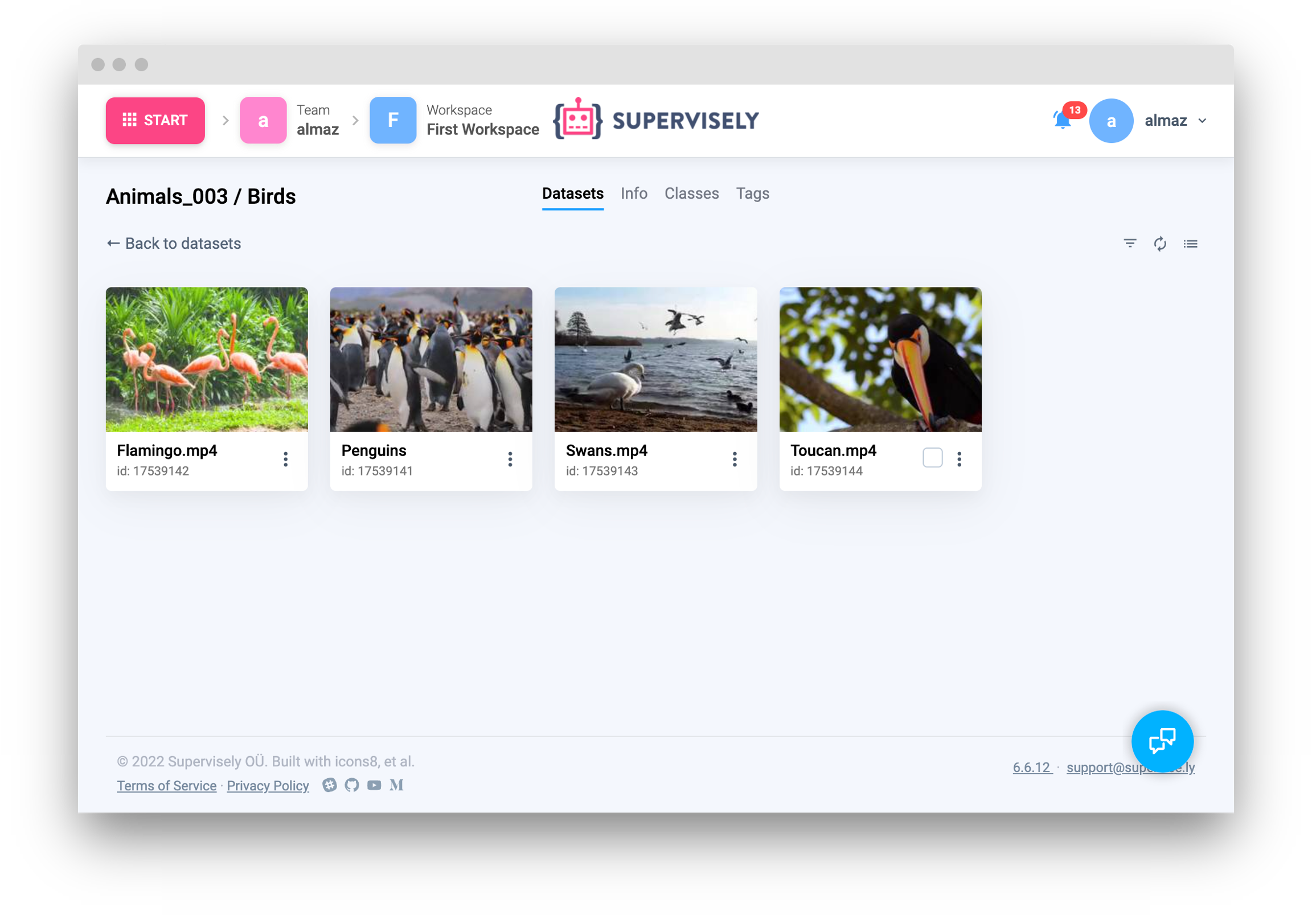

Upload list of videos.

✅ Supervisely API allows uploading multiple videos in a single request. The code sample below sends fewer requests and it leads to a significant speed-up of our original code.

Source code:

names = ["Flamingo.mp4", "Swans.mp4", "Toucan.mp4"]
paths = [os.path.join(original_dir, name) for name in names]

upload_info = api.video.upload_paths(dataset.id, names, paths)

print(f"{len(upload_info)} videos successfully uploaded to  Supervisely platform")

Output:

# 3 videos successfully uploaded to Supervisely platform

Get information about videos

Single video.

Get information about video from Supervisely by id.

Source code:

video_info = api.video.get_info_by_id(video.id)

print(video_info)

Output:

# VideoInfo(
#     id=17539140,
#     name="Penguins",
#     hash="6aTUVnuyfGqIuMxH8l1t1yvkmn/9iuWbHUOE7iebhYk=",
#     link=None,
#     team_id=435,
#     workspace_id=654,
#     project_id=15748,
#     dataset_id=53751,
#     path_original="/h5un6l2bnaz1vj8a9qgms4-public/videos/U/O/LF/T7tiPVoBUyFaM.mp4",
#     frames_to_timecodes=[],
#     frames_count=413,
#     frame_width=640,
#     frame_height=360,
#     created_at="2022-12-21T23:09:54.191Z",
#     updated_at="2022-12-21T23:09:54.191Z",
#     tags=[],
#     file_meta={},
#     custom_data={},
#     processing_path="1/1703793",
# )

You can also get information about video from Supervisely by name.

Source code:

video_info_by_name = api.video.get_info_by_name(dataset.id, video.name)

print(f"Video name - '{video_info_by_name.name}'")

Output:

# Video name - 'Penguins'

Get all videos from dataset.

Get information about video from Supervisely by id.

Source code:

video_info_list = api.video.get_list(dataset.id)

print(f"{len(video_info_list)} videos information received.")

Output:

# 4 videos information received.

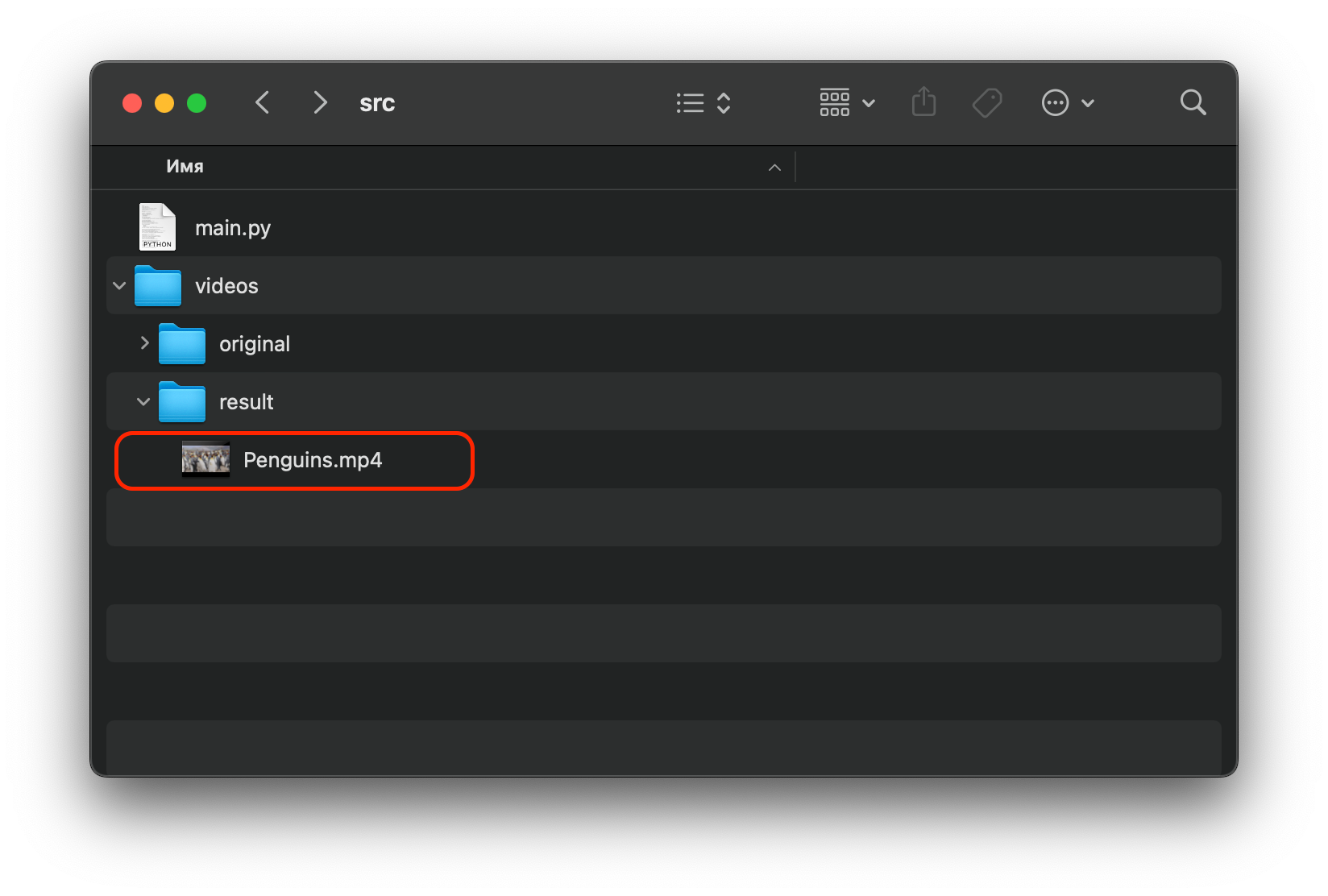

Download video

Download video from Supervisely to local directory by id. Source code:

save_path = os.path.join(result_dir, f"{video_info.name}.mp4")

api.video.download_path(video_info.id, save_path)

print(f"Video has been successfully downloaded to '{save_path}'")

Output:

# Video has been successfully downloaded to 'src/videos/result/Penguins.mp4'

Get video metadata

Get video metadata from file

Source code:

video_path = "src/videos/result/Penguins.mp4"
file_info = sly.video.get_info(video_path)
pprint(file_info)

Output:

{
  "duration": 16.52,
  "formatName": "mov,mp4,m4a,3gp,3g2,mj2",
  "size": "1599101",
  "streams": [
    {
      "codecName": "h264",
      "codecType": "video",
      "duration": 16.52,
      "framesCount": 413,
      "framesToTimecodes": [],
      "height": 360,
      "index": 0,
      "rotation": 0,
      "startTime": 0,
      "width": 640
    }
  ]
}

Get video metadata from server

Source code:

video_info = api.video.get_info_by_id(video.id)
pprint(video_info.file_meta)

Output:

{
  "codecName": "h264",
  "codecType": "video",
  "duration": 16.52,
  "formatName": "mov,mp4,m4a,3gp,3g2,mj2",
  "framesCount": 413,
  "framesToTimecodes": [],
  "height": 360,
  "index": 0,
  "mime": "video/mp4",
  "rotation": 0,
  "size": "1599101",
  "startTime": 0,
  "streams": [],
  "width": 640
}

Download video frames as images

Download single frame of video as image from Supervisely to local directory.

Source code:

frame_idx = 15
file_name = "frame.png"
save_path = os.path.join(result_dir, file_name)

api.video.frame.download_path(video_info.id, frame_idx, save_path)

print(f"Video frame has been successfully downloaded as image to '{save_path}'")

Output:

# Video frame has been successfully downloaded as image to 'src/videos/result/frame.png'

Download multiple frames in a single requests from Supervisely and save as images to local directory.

Source code:

frame_indexes = [5, 10, 20, 30, 45]
save_paths = [os.path.join(result_dir, f"frame_{idx}.png") for idx in frame_indexes]

api.video.frame.download_paths(video_info.id, frame_indexes, save_paths)

print(f"{len(frame_indexes)} images has been successfully downloaded to '{save_path}'")

Output:

# 5 images has been successfully downloaded to 'src/videos/result/frame.png'

Download video frames as RGB NumPy matrix

You can also download video frame as RGB NumPy matrix.

Source code:

video_frame_np = api.video.frame.download_np(video_info.id, frame_idx)
print(f"Video frame downloaded as RGB NumPy matrix. Frame shape: {video_frame_np.shape}")

Output:

# Video frame downloaded as RGB NumPy matrix. Frame shape: (360, 640, 3)

Download multiple frames in a single requests from Supervisely as RGB NumPy matrix.

Source code:

video_frames_np = api.video.frame.download_nps(video_info.id, frame_indexes)

print(f"{len(video_frames_np)} video frames downloaded in RGB NumPy matrix.")

Output:

# 5 video frames downloaded as RGB NumPy matrix.

Remove videos from Supervisely

Remove one video.

Remove video from Supervisely by id

Source code:

api.video.remove(video_info.id)
print(f"Video (ID: {video_info.id}) successfully removed.")

Output:

# Video (ID: 17536607) has been successfully removed.

Remove list of videos.

Remove list of videos from Supervisely by ids.

Source code:

videos_to_remove = api.video.get_list(dataset.id)
remove_ids = [video.id for video in videos_to_remove]
api.video.remove_batch(remove_ids)
print(f"{len(videos_to_remove)} videos successfully removed.")

Output:

# 3 videos have been successfully removed.

Information about available codecs, extensions, and containers.

Note: Only basic video codecs are available in the Community Edition, for additional video codecs you can try the Enterprise Edition.

The Enterprise Edition allows you to use the full range of extensions, containers and codecs listed below without any limits.

  • extensions: .avi, .mp4, .3gp, .flv, .webm, .wmv, .mov, .mkv

  • containers: mp4, webm, ogg, ogv

  • codecs: h264, vp8, vp9

In the Community Edition, it is recommended to use vp9, h264 codecs with mp4 container.

How to exract frames from videos correctly using the OpenCV library.

cap = cv2.VideoCapture(filepath)

# set CAP_PROP_ORIENTATION_AUTO flag for VideoCapture
cap.set(cv2.CAP_PROP_ORIENTATION_AUTO, 1)

while cap.isOpened():
    success, frame = cap.read()
    if not success:
        print("Can't receive frame (stream end?). Exiting ...")
        break
    # cv2.imshow(f"{frame.shape[:2]}", frame)
    if cv2.waitKey(1) & 0xFF == ord("q"):
        break

# Release everything if job is finished
cap.release()
# cv2.destroyAllWindows()

Step 2. Clone with source code and demo data and create .

In this tutorial, you will need an workspace ID that you can get from environment variables.

In case you need to exract frames from videos, you should be aware of one important detail of the OpenCV library. According to , different versions of the OpenCV library have different values of the CAP_PROP_ORIENTATION_AUTO flag. This may cause that VideoCapture to ignore video orientation metadata. To avoid incorrect extraction of frames from videos, it is recommended to directly define flag CAP_PROP_ORIENTATION_AUTO:

🎉
repository
Virtual Environment
issue #15499
this tutorial is on GitHub
Learn more here.
upload one or more videos to Supervisely dataset.
get information about videos by id or name.
download video from Supervisely.
get video metadata
download one or more frames of video and save to local directory as images.
download one or more frames of video as RGB NumPy matrix.
remove videos from Supervisely.
choose from the available codecs, extensions and containers.
exract frames from videos correctly using the OpenCV library.
Learn more here
