  1. App development
  2. Widgets
  3. Status Elements

Badge

PreviousTaskLogsNextModelInfo

Last updated 1 year ago

Was this helpful?

Introduction

Badge widget in Supervisely is a versatile tool for displaying notifications or counts on elements such as buttons, text. With customizable types (number, text, or dot), visibility, the Badge can be easily used in Supervisely apps for a seamless user experience.

Function signature

Badge(
    value: Union[int, str, float] = None,
    widget: Optional[Widget] = None,
    max: int = None,
    is_dot: bool = False,
    hidden: bool = False,
    widget_id: str = None,
)
default

Parameters

Parameters
Type
Description

value

Union[int, str, float]

Badge widget content value

widget

Optional[Widget]

Determine a widget to content in badge

max

int

Determine max value of badge content. Value type has to be a number

is_dot

bool

Specifies that badge is displayed as a dot

hidden

bool

Specifies that a badge widget is hidden

widget_id

str

ID of the widget

value

Badge widget content value

type: Union[int, str, float]

default value: None

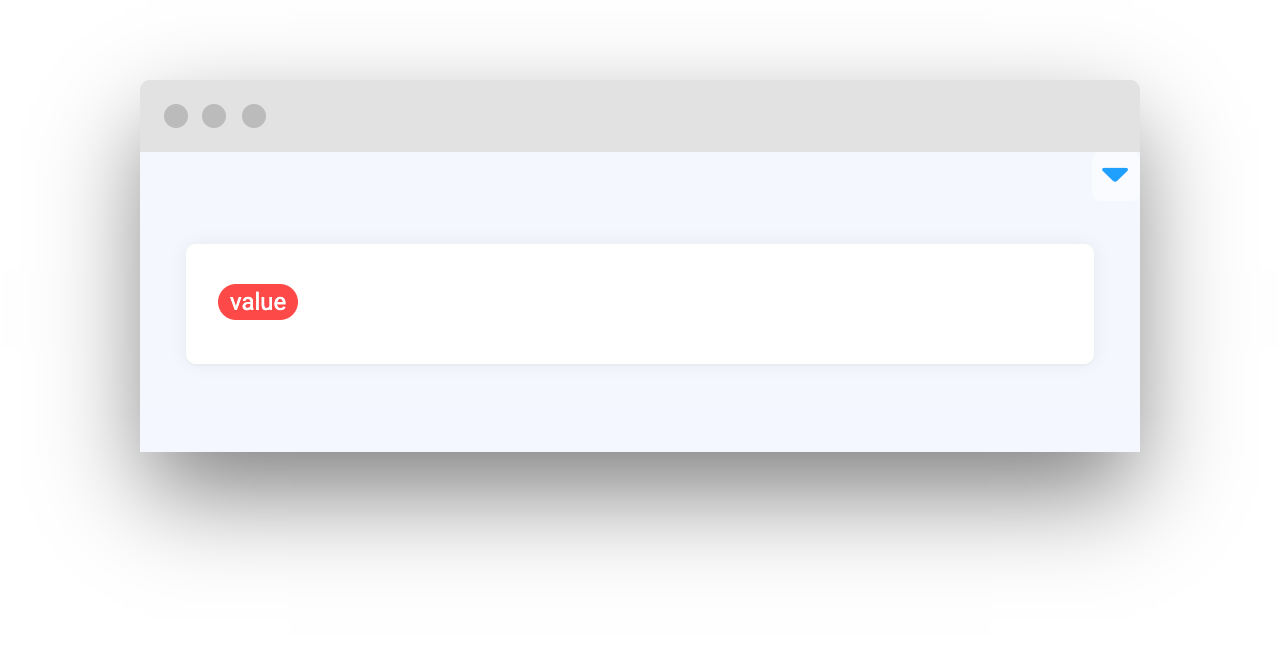

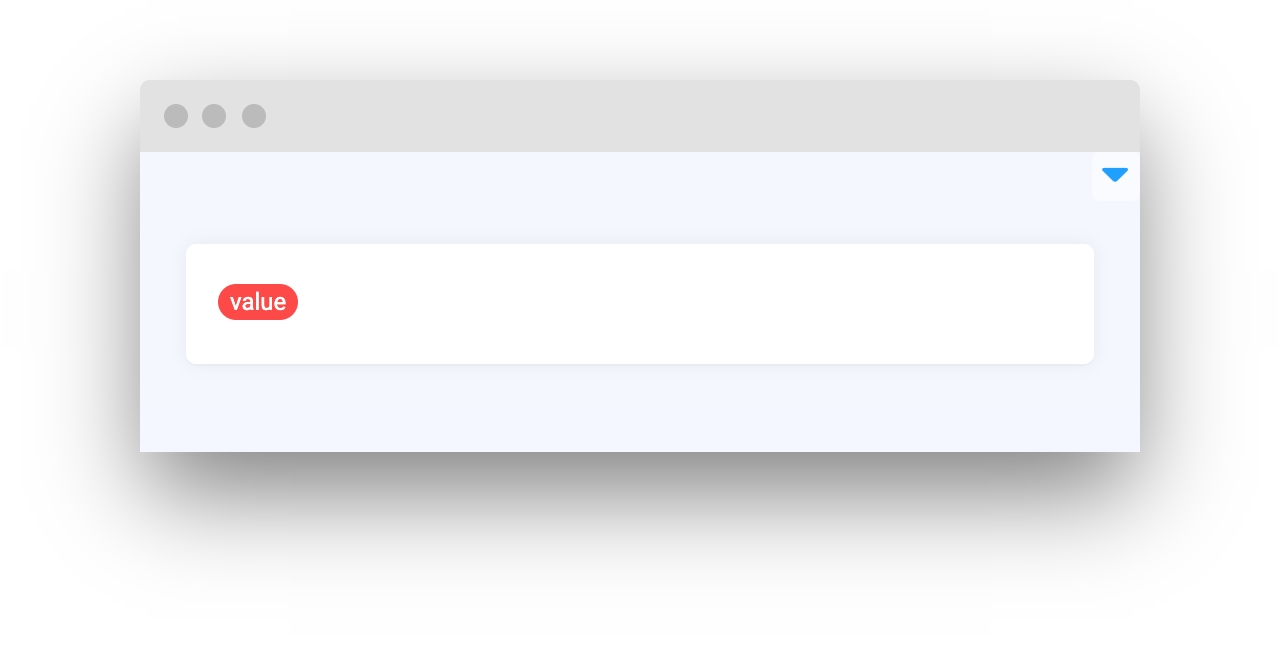

badge = Badge("value")

widget

Determine a widget to content in badge

type: Optional[Widget]

default value: None

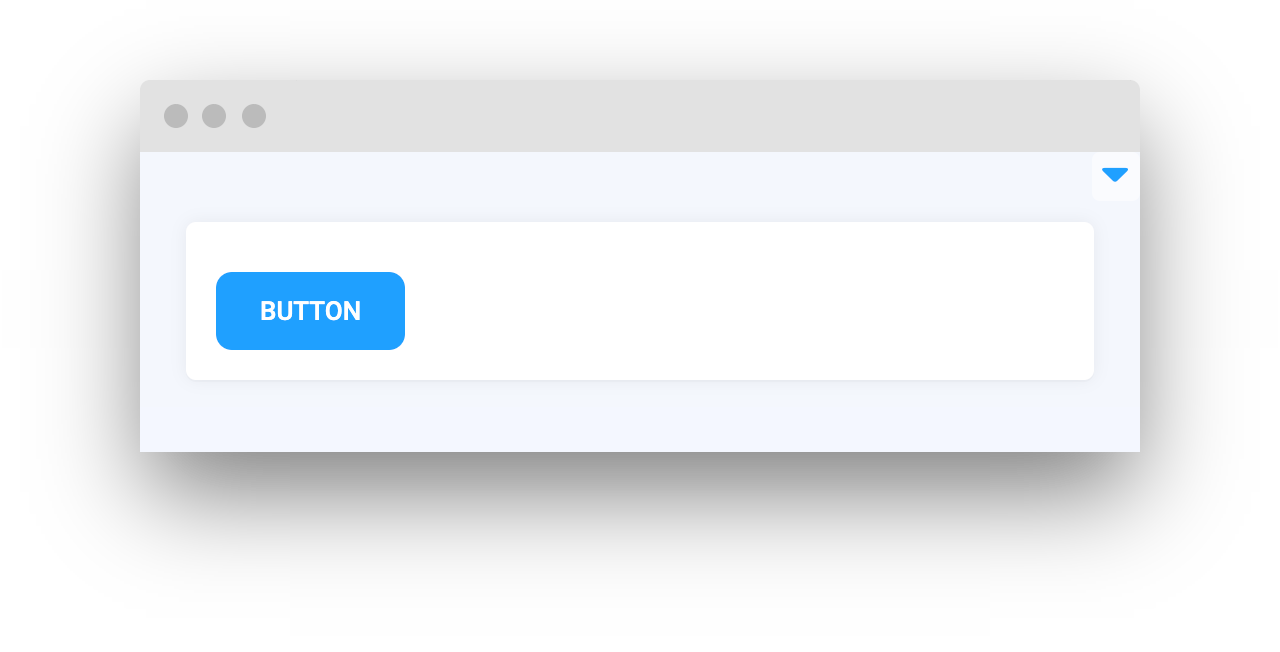

button = Button()
badge = Badge(widget=button)

max

Determine max value of badge content. Value type has to be a number

type: int

default value: None

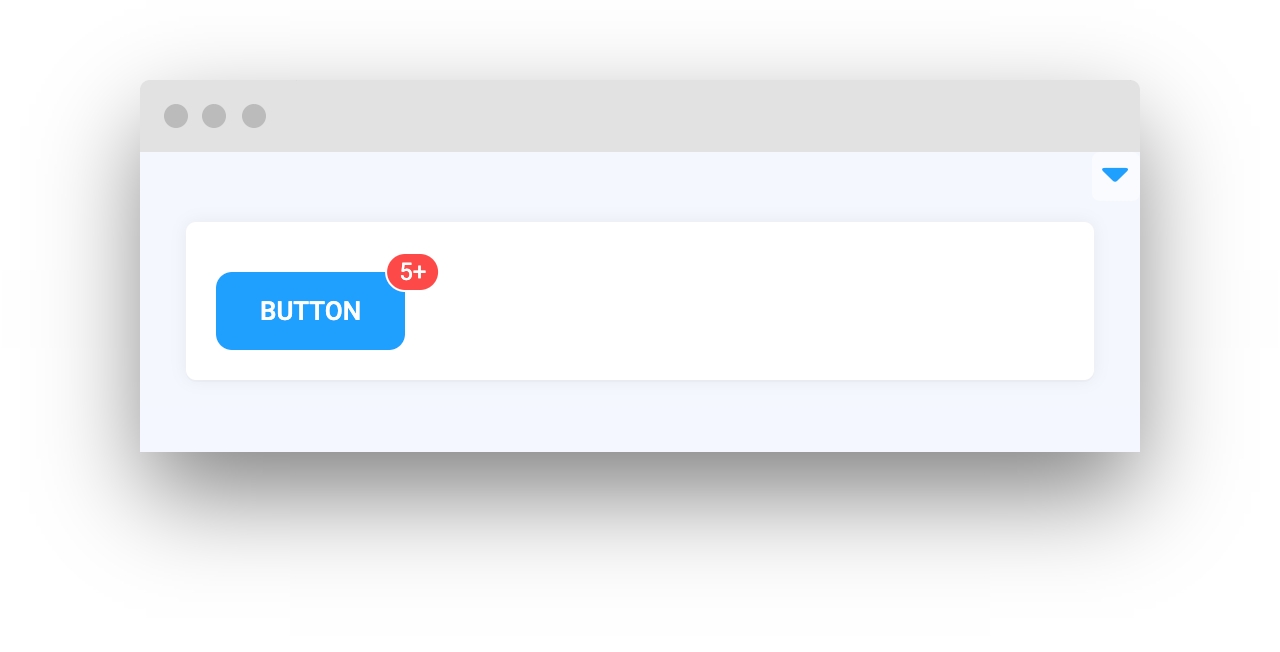

button = Button()
badge = Badge(
    widget=button,
    value=10,
    max=5,
)

is_dot

Specifies that badge is displayed as a dot

type: bool

default value: False

button = Button()
badge = Badge(
    widget=button,
    is_dot=True,
)

hidden

Specifies that a badge widget is hidden

type: bool

default value: False

button = Button()
badge = Badge(
    widget=button,
    hidden=True,
)

widget_id

ID of the widget

type: str

default value: None

Methods and attributes

Attributes and Methods
Description

set_value(value: Union[str, int, float])

Set badge value

get_value()

Get badge value

clear()

Clear badge value

hide_badge()

Hide badge on widget

show_badge()

Show badge on widget

toggle_visibility()

Toggle visibility of badge on widget

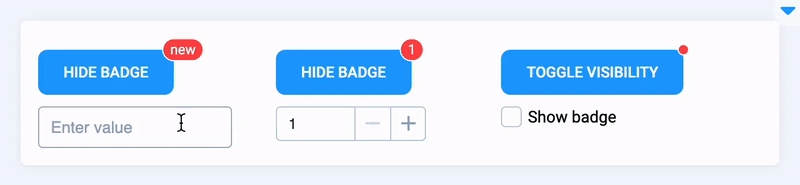

Mini App Example

You can find this example in our Github repository:

Import libraries

import os

import supervisely as sly
from dotenv import load_dotenv
from supervisely.app.widgets import Badge, Button, Checkbox, Container, Card, Input, InputNumber

Init API client

First, we load environment variables with credentials and init API for communicating with Supervisely Instance:

load_dotenv("local.env")
load_dotenv(os.path.expanduser("~/supervisely.env"))

api = sly.Api()

Prepare Button, Checkbox, Input, InputNumber widgets to contain in Badge widgets

button_1 = Button("Hide badge")
text_input = Input(placeholder="Enter value")

button_2 = Button("Hide badge")
number_input = InputNumber(min=1, max=100)

button_3 = Button("Toggle visibility")
checkbox = Checkbox("Show badge")

Create Badge widgets we will use in UI for demo

text_badge = Badge(widget=button_1, value="new")

number_badge = Badge(widget=button_2, value=1, max=10)

dot_badge = Badge(widget=button_3, is_dot=True)

Create app layout

Prepare a layout for app using Card widget with the content parameter and place widget that we've just created in the Container widget.

text_container = Container([text_badge, text_input])

number_container = Container([number_badge, number_input])

dot_container = Container([dot_badge, checkbox])

container = Container(
    widgets=[text_container, number_container, dot_container],
    direction="horizontal",
)
card = Card(content=container)

Create app using layout

Create an app object with layout parameter.

app = sly.Application(layout=layout)

Add functions to control widgets from code

@text_input.value_changed
def set_badge_text(value):
    text_badge.set_value(value)


@number_input.value_changed
def set_badge_number(value):
    number_badge.set_value(value)


@checkbox.value_changed
def change_badge_visibility(value):
    dot_badge.toggle_visibility()


@button_1.click
def change_badge_visibility():
    text_badge.hide_badge()


@button_2.click
def change_badge_visibility():
    number_badge.hide_badge()


@button_3.click
def change_badge_visibility():
    dot_badge.toggle_visibility()
value
widget
max
isdot
hidden

layout
🔥
supervisely-ecosystem/ui-widgets-demos/status-elements/006_badge/src/main.py
