Video

Introduction

Video widget in Supervisely is a custom player designed for displaying videos and annotations frame-by-frame. It allows to play, pause, rewind, and fast-forward videos, as well as move through them frame by frame. It is a powerful tool for visualizing and analyzing video data with annotations.

Function signature

Video(video_id=None, widget_id=None)

Parameters

Parameters	Type	Description
video_id	int	Video ID
widget_id	str	ID of the widget

video_id

Determines Video ID, used in Video widget.

type: int

default value: None

widget_id

ID of the widget.

type: str

default value: None

Methods and attributes

Attributes and Methods	Description
video_id(id: int)	Get video_id property.
loading(value: bool)	Get or set loading property to Video widget.
set_video(id: int)	Set video in Video widget by ID.
set_current_frame(value: int)	Set video player to given frame.
get_current_frame()	Get current video player frame.
get_frames_count()	Return number of frames in video.
@play_clicked	Decodator function is handled when video start to play.
@pause_clicked	Decodator function is handled when video stopped.
@frame_change_started	Decodator function is handled when a frame index is being changed.
@frame_change_finished	Decodator function is handled when there was no change in frame index for the last second.

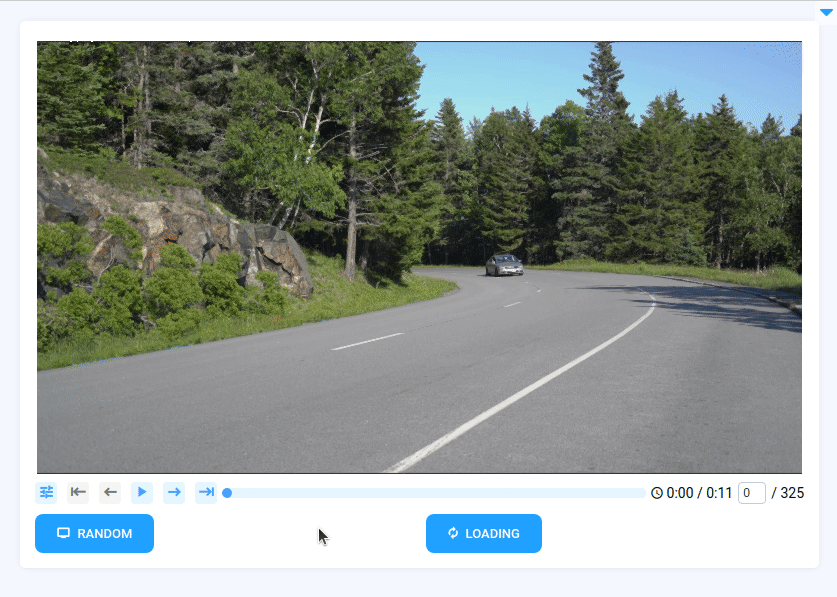

Mini App Example

You can find this example in our Github repository:

ui-widgets-demos/media/004_video/src/main.py

Import libraries

import os
from random import randint

import supervisely as sly
from dotenv import load_dotenv
from supervisely.app.widgets import Button, Card, Container, Video

Init API client

First, we load environment variables with credentials and init API for communicating with Supervisely Instance:

load_dotenv("local.env")
load_dotenv(os.path.expanduser("~/supervisely.env"))

api = sly.Api()

Get Video ID from environment variables

video_id = int(os.environ["modal.state.slyVideoId"])

Get VideoInfo from server

video_info = api.video.get_info_by_id(id=video_id)

Initialize Video widget we will use in UI

video = Video(video_id=video_id)

Initialize buttons to control widget

button_random_frame = Button(text="Random", icon="zmdi zmdi-tv")
button_loading = Button(text="Loading", icon="zmdi zmdi-refresh")

buttons_container = Container(
    widgets=[button_random_frame, button_loading], direction="horizontal",)

Create app layout

Prepare a layout for app using Card widget with the content parameter and place widget that we've just created in the Container widget.

card = Card(
    title="Video",
    content=Container(widgets=[video, buttons_container]),
)

layout = Container(widgets=[card])

Create app using layout

Create an app object with layout parameter.

app = sly.Application(layout=layout)

Handle button clicks

Use the decorator as shown below to handle button click. We have 6 buttons: to play video, to stop video, to change video frame, to stop change video frame, to set random frame, to download video.

@button_random_frame.click
def set_random_frame():
    video.set_current_frame(randint(0, video_info.frames_count - 1))


@button_loading.click
def video_loading():
    if video.loading:
        video.loading = False
    else:
        video.loading = True
    print(f"Loading: {video.loading}")
